Available in two different lifting heights 73.5" and (XL) 80.5"


Item No:SPM2090.013-5001

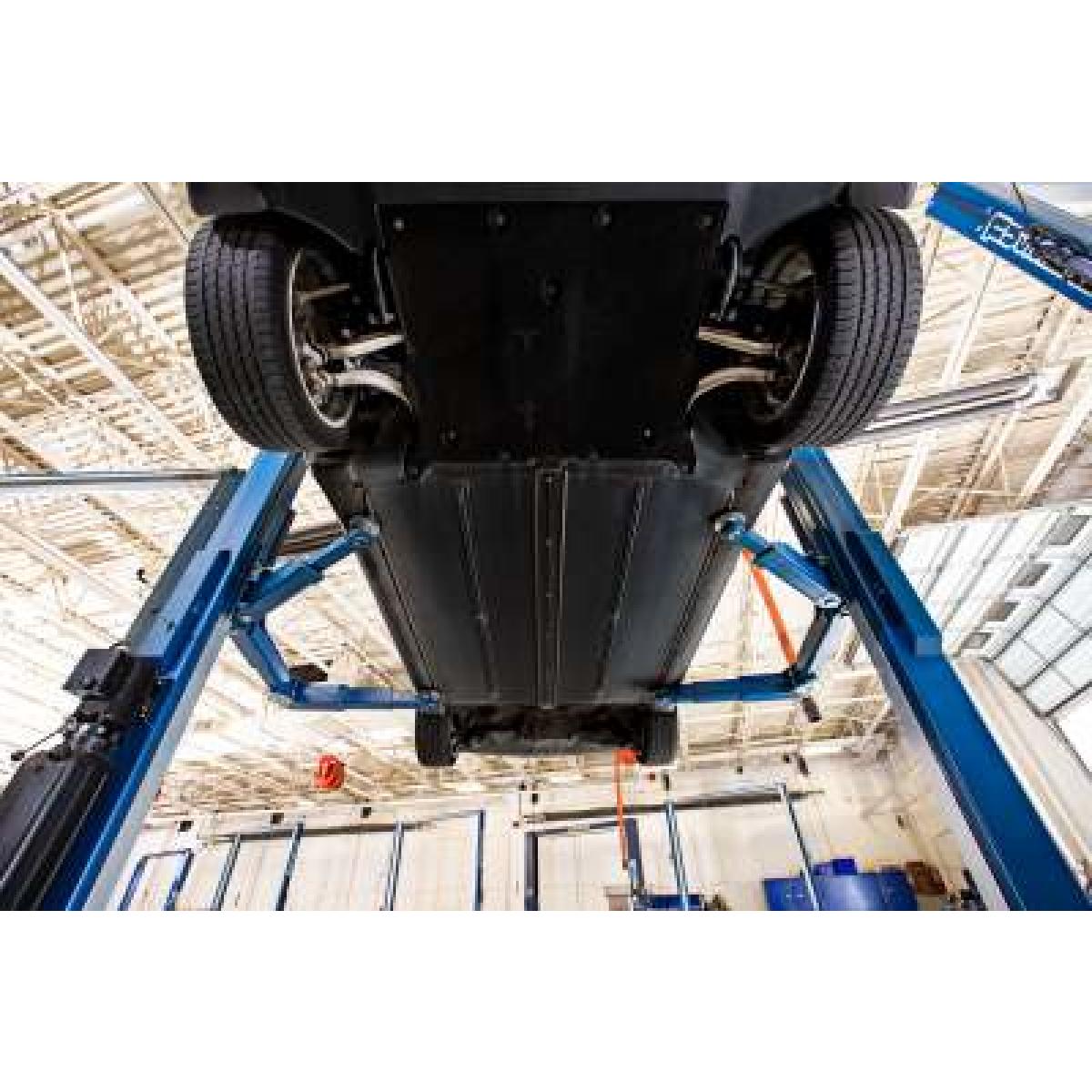

OTTO Arms Nussbaum 1114 V2 compressed

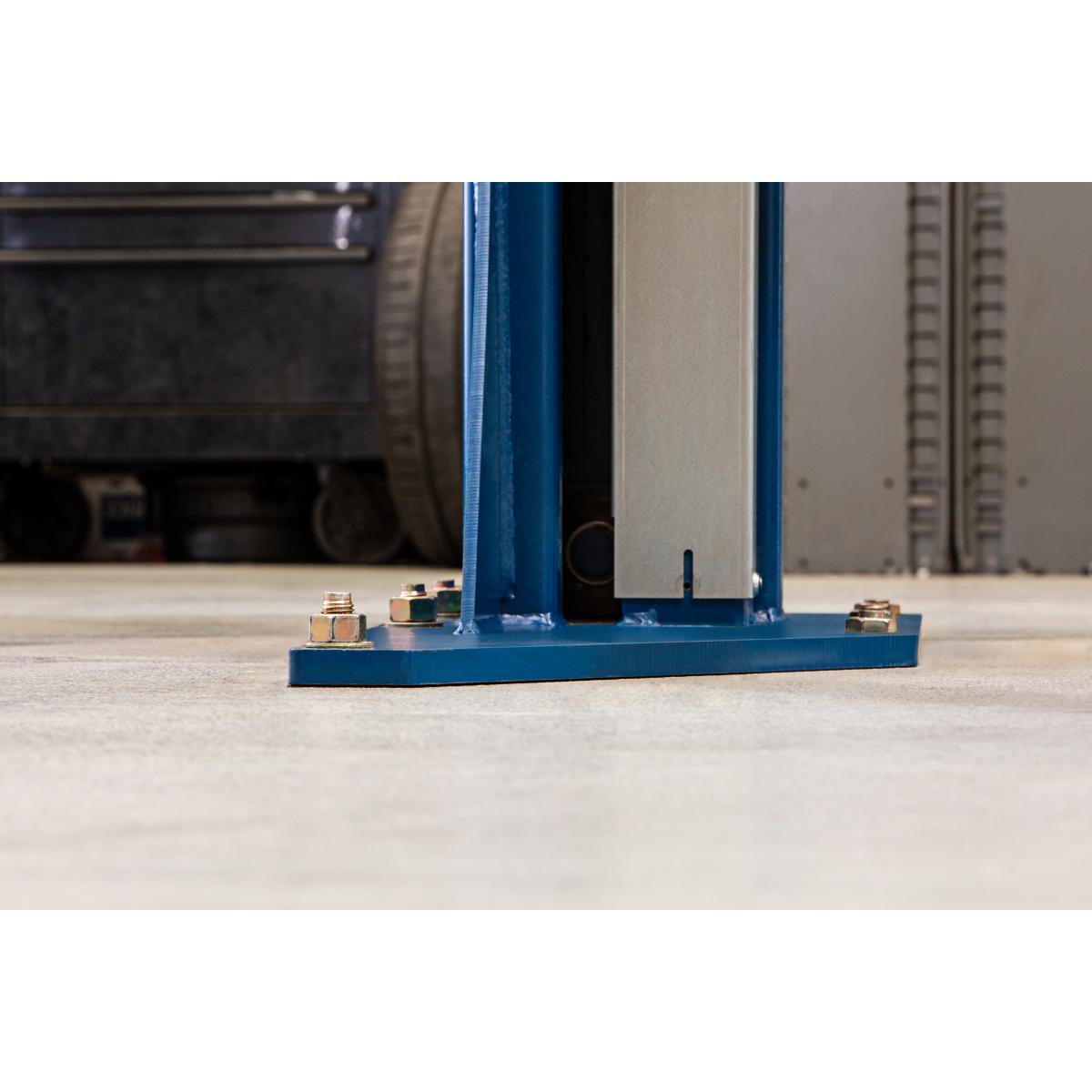

2 Post Baseplate Nussbaum 1003

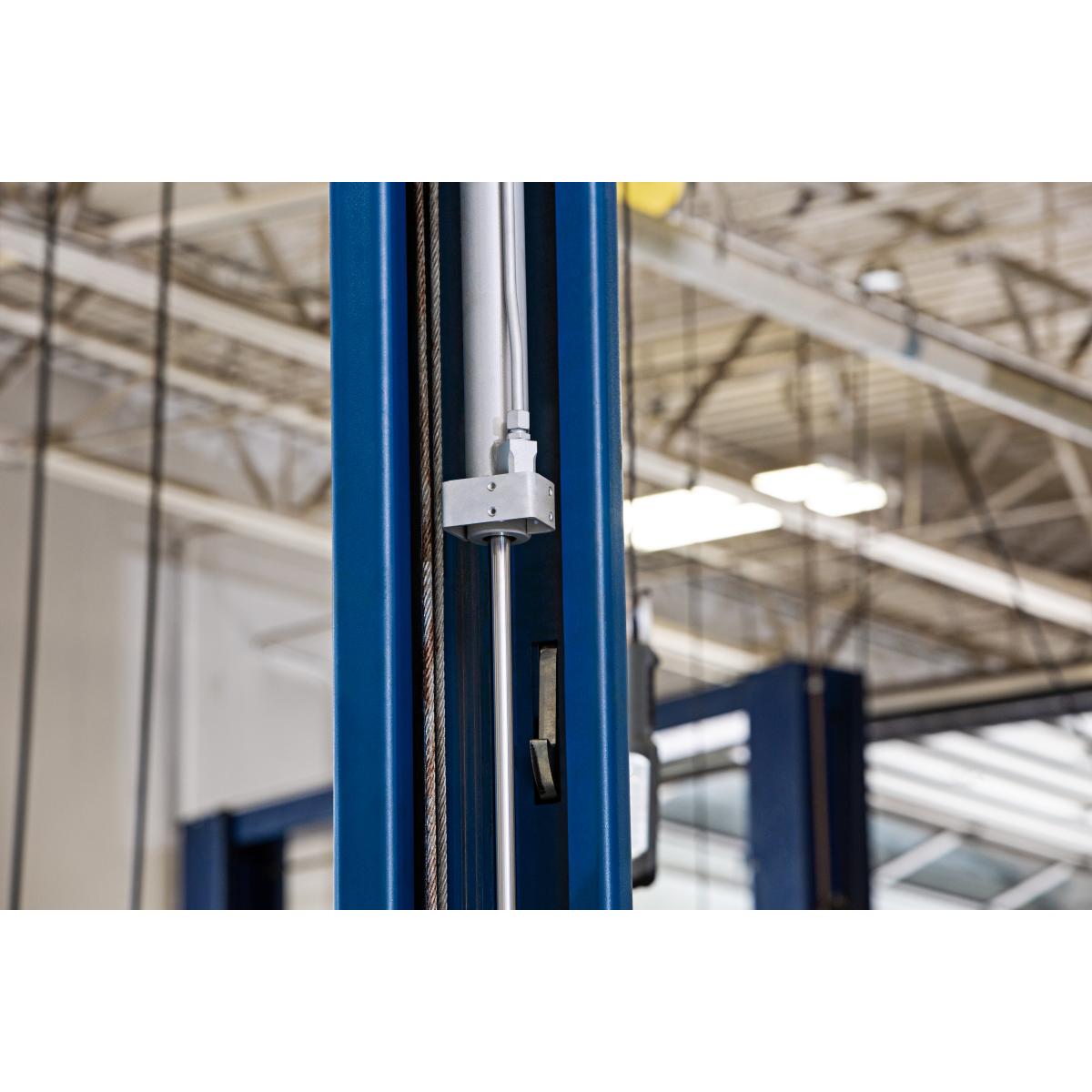

2 Post Cylinder Nussbaum 1136

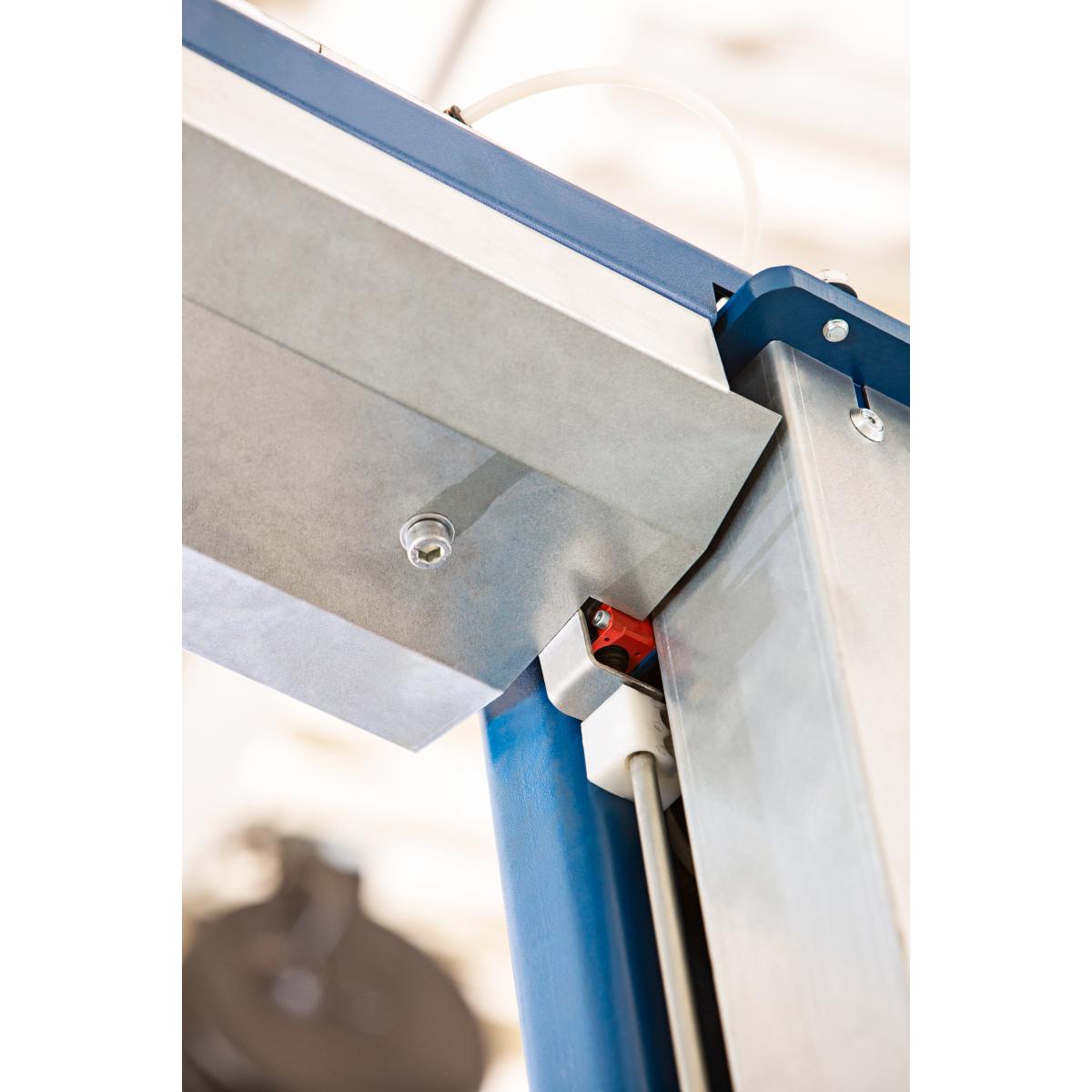

Overhead Shutoff Nussbaum 1104

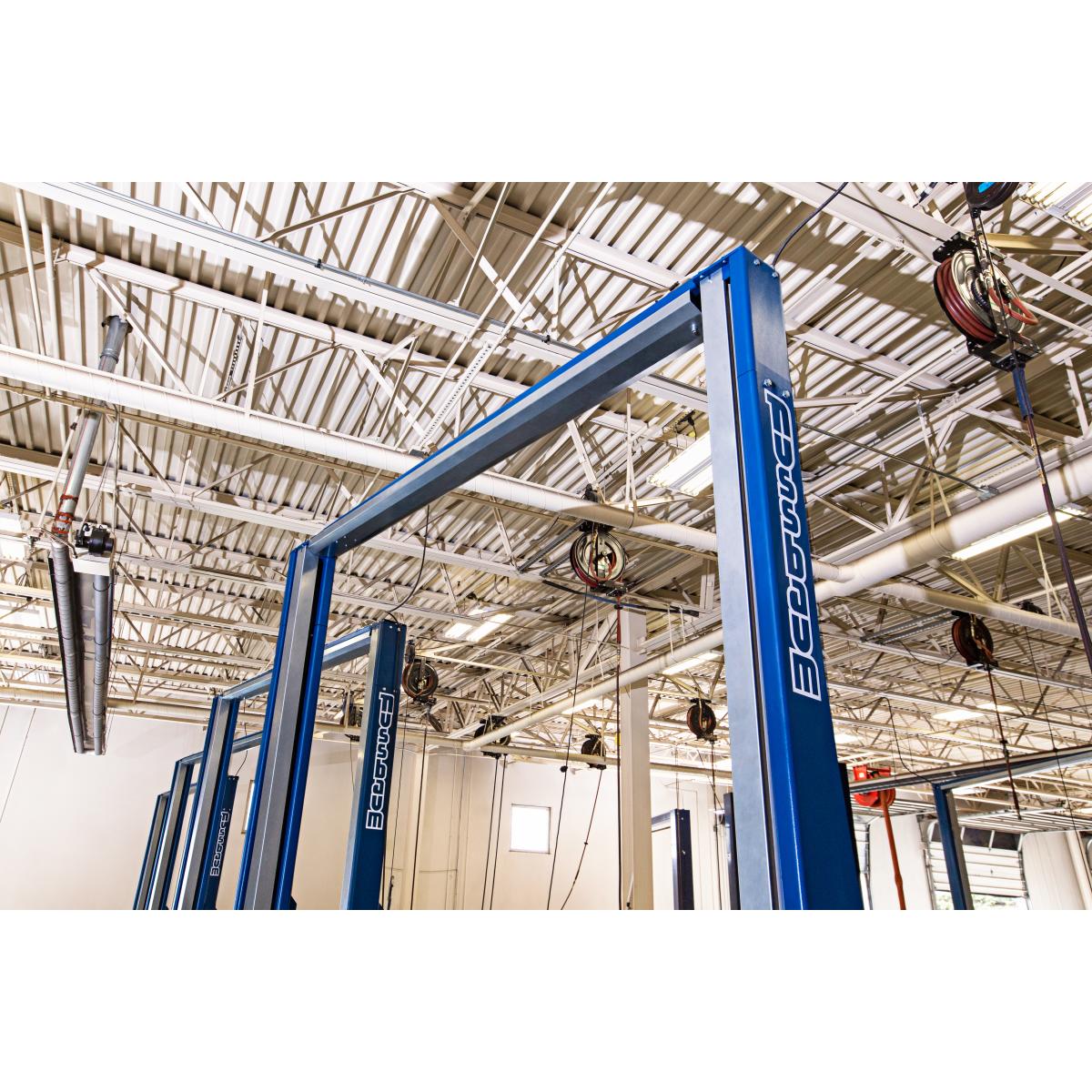

Overhead Shutoff Nussbaum 1161 V2
OTTO Arms Nussbaum 0639 V4
More info
Customize Compare
Brief description
Item No: SPM2090.013-5001
Lifting capacity: 9000 lb
Type 2 post lifts
Color Bleu


The SPL OTTO 9 is the reinvention of car lifting and workshop design. Over 75 years of NUSSBAUM innovation and experience has lead us to this revolutionary design. We are proud to name this lift after our founder Otto Nussbaum. The SPL OTTO 9 is named for the benefits it gives to operators, as well as the productivity in terms of space and dollars to the owner. And this lift is 100% manufactured in the USA.

Why is the SPL OTTO 9 so revolutionary?

  • It changes the way you lift your vehicles
  • It changes the way your workshop looks
  • It prepares your workshop for electric vehicles including battery exchanges
  • It will always provide the best access for the job


Installing the SPL OTTO 9 at a width of 120 - 124″ you not only optimize your workshop space, you can also install it 40″ closer to the wall than any other 2-post lift on the market. This all-around space savings gives you more access around the vehicle with much less effort. The 120 - 124″ install is perfect for any shop that works on standard passenger cars, but also pickup trucks. Its narrow installation and long arm reach make it very easy to reach frames on trucks, as well as pick up points that are far apart.


  • Double jointed rear arms
  • 9,000 lbs lifting capacity
  • OTTO is ready for new technologies like electric cars and battery exchanges
  • Can be installed as close as 120 - 124″ apart and still reach most passenger vehicles
  • Standard install at 124
  • Always open the doors
  • Obstruction free access to the areas you need to work on
  • OTTO allows for new service opportunities with electric cars. The patent-pending lift offers full service underneath the car which allows all covers to be removed to get to the vehicles batteries
  • Lift 100% manufactured in the USA

Capacity 9,000 lb
Pick up pad height min 4.1 - 6 inch
Front arms extension min-max 27.25 - 43.5 inch
Rear arm extension min-max 0 inch
Inside column width 105 inch
Lifting height 73.5 inch
Overall width min 120 - 124 inch
Drive-through width min 94.75 inch
Total height min 143 inch
Power supply (V/ph) 208/230 / 1 ph
Motor power 3.5 hp


SPL OTTO DataSheet 143 KB

Inspection books

SPL 10000 Spare Parts Catalog v2 1.7 MB
SPL 10000IOM rev4 10 1 2019 v2 1.8 MB
Wooden crate
Packaging Wooden crate
Product Dimensions 143in x 42in x 20in
Total weight 1750lb
Stackable 4
