The OTTO 15 is equipped with flexible, space-saving double-jointed arms and an enormous lifting capacity. The OTTO 15 can safely lift vehicles ranging from small passenger cars and light trucks up to large tractor trailers. The dual power unit, with control panel at both columns provides bigger comfort and safety. And thanks to the electronic sync system, there is no rigid top connection, which allows the installation height to be variable.
• Security and synchronization with the Safety Star Technology
• Shut off bar on top
• No ground connection
• Double-jointed arms
• Fast lifting and lowering
• Low maintenance and almost wear-free cylinder

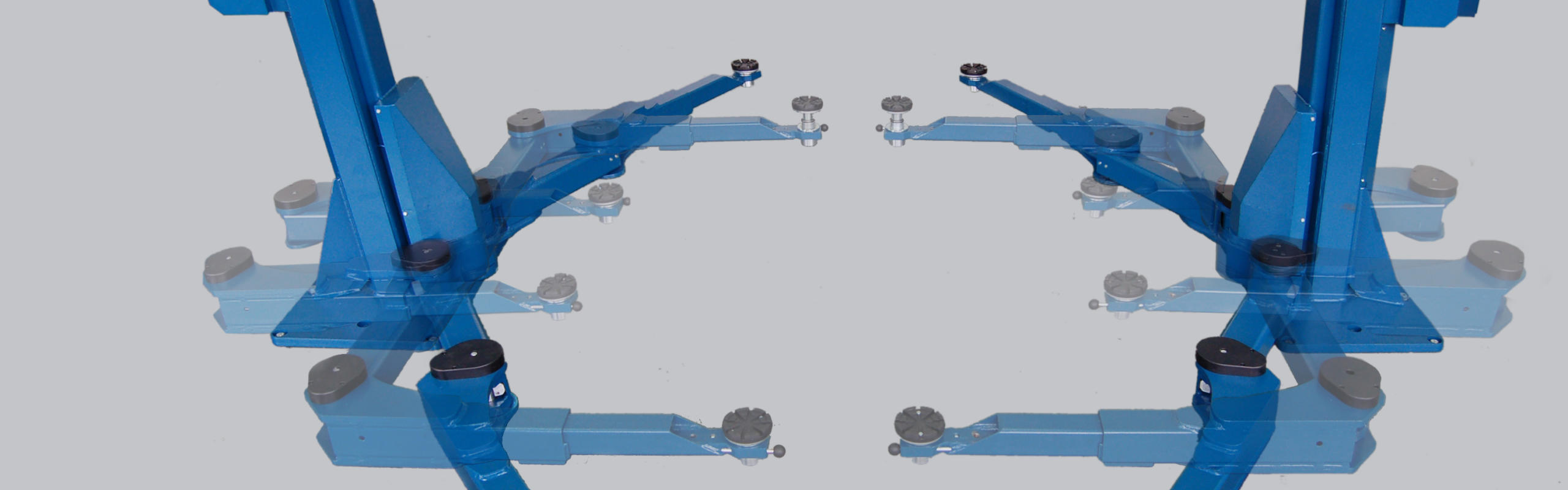

• The symmetric double-jointed arms are roller-beared and telescopic, guaranteeing
exact positioning to the individual pick-up points, even for small passenger cars.
• Thanks to the optional MINI MAX adapter, with a capacity of 9,000 lb, the
double-jointed arms are really universal and can lift even the smallest cars. With
an adjustable range from 3" to 7", the lift with MINI MAX is ideal for small cars
and other vehicles with low clearance.
|Pick up pad height min||5.5 - 8.5 inch|
|Front arms extension min-max||0-70.5 inch|
|Rear arm extension min-max||0-70.5 inch|
|Column height||107.75 inch|
|Lifting height||78.75 inch|
|Overall width min||165.75 inch|
|Drive-through width min||102.75 inch|
|Total height min||182.75 - 200.75 inch|
|Power supply (V/ph)||208/230V 1 PH|
|Motor power||3 hp|
