SLH 8 M MM

Hydraulic 2 post lifts with Mini-Max arms

SLH 8 M MM

Item No:SLH235.0510040U-7016
SLH 8 M MM
MM arm

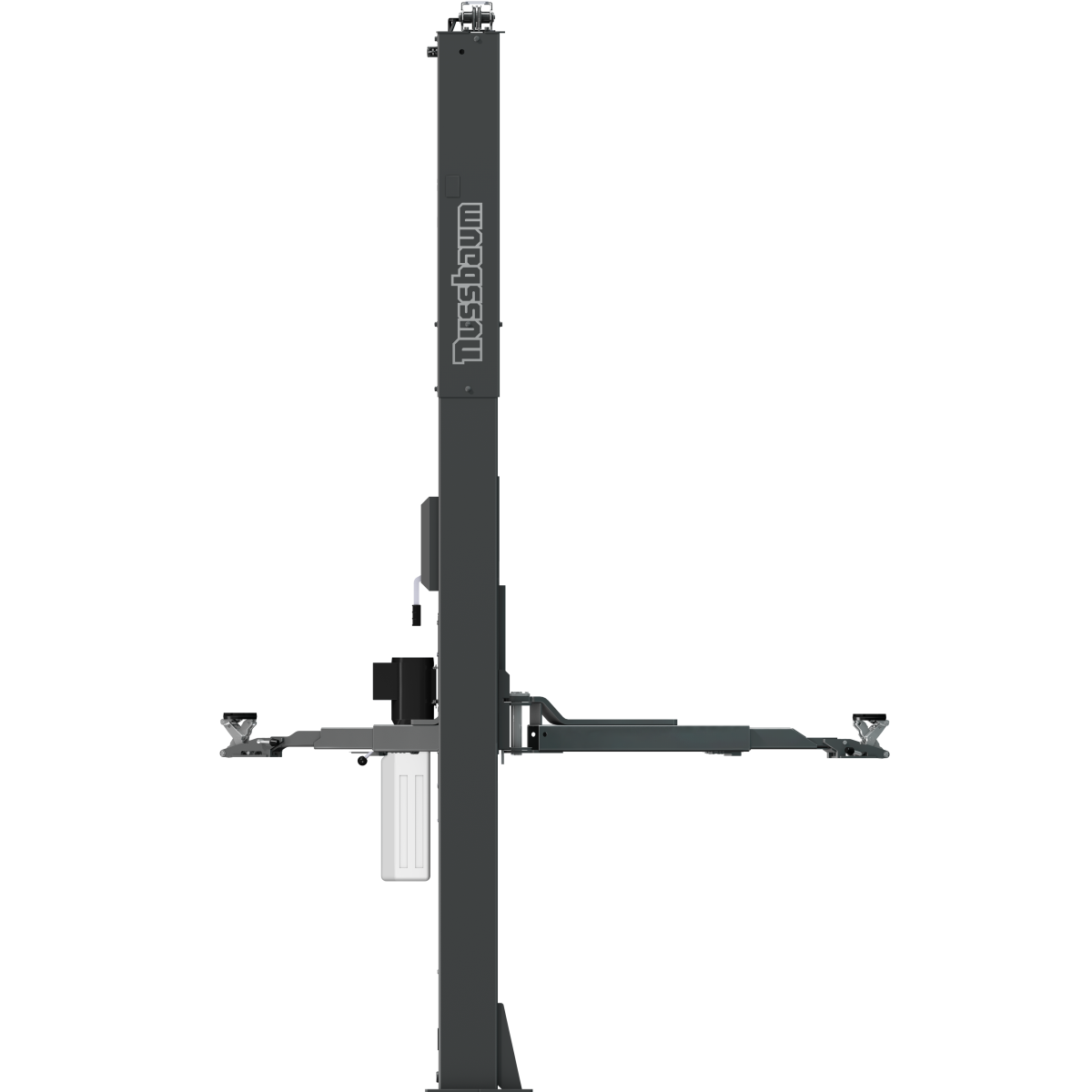

SLH_8_Mechanical_MM_s-RAL7016_grey

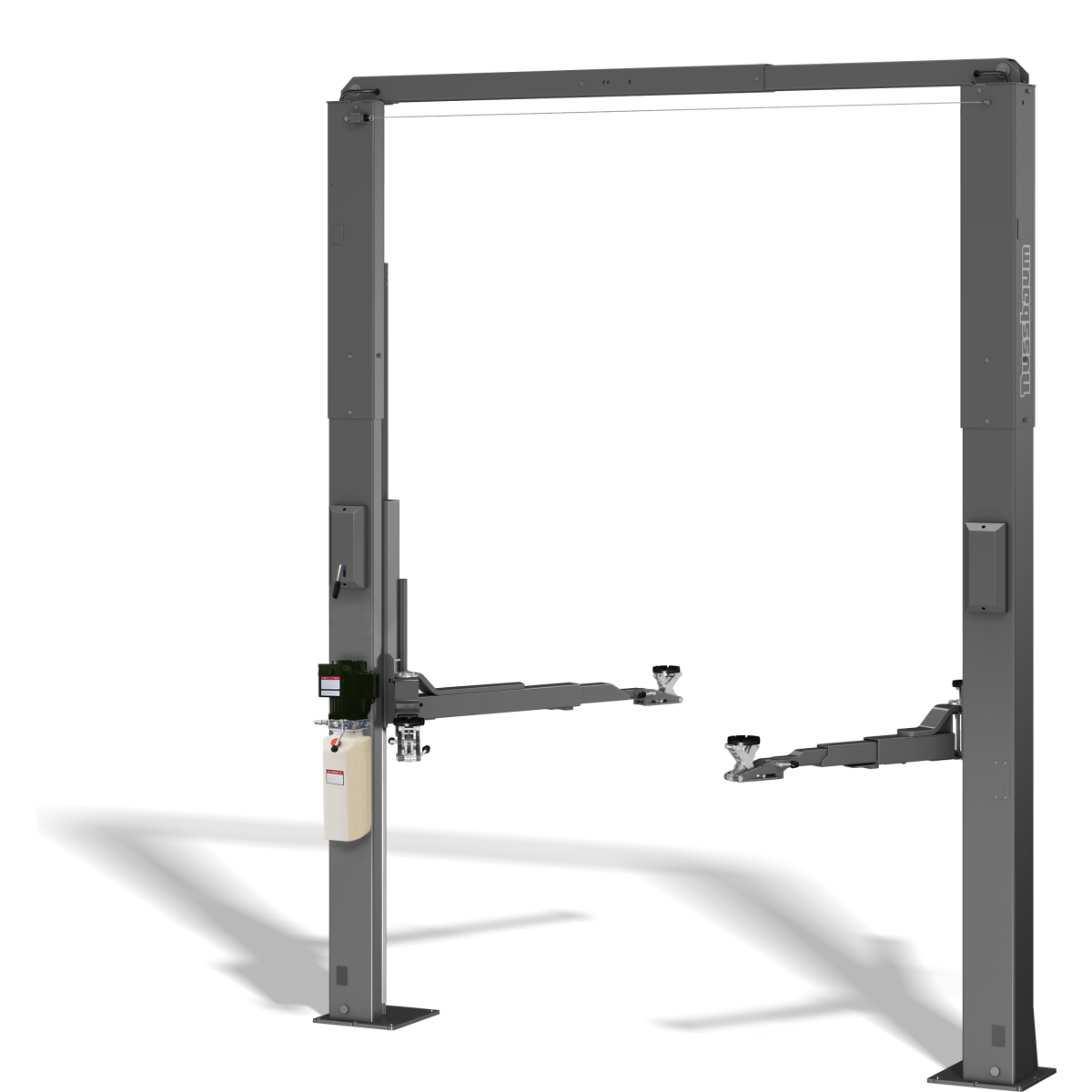

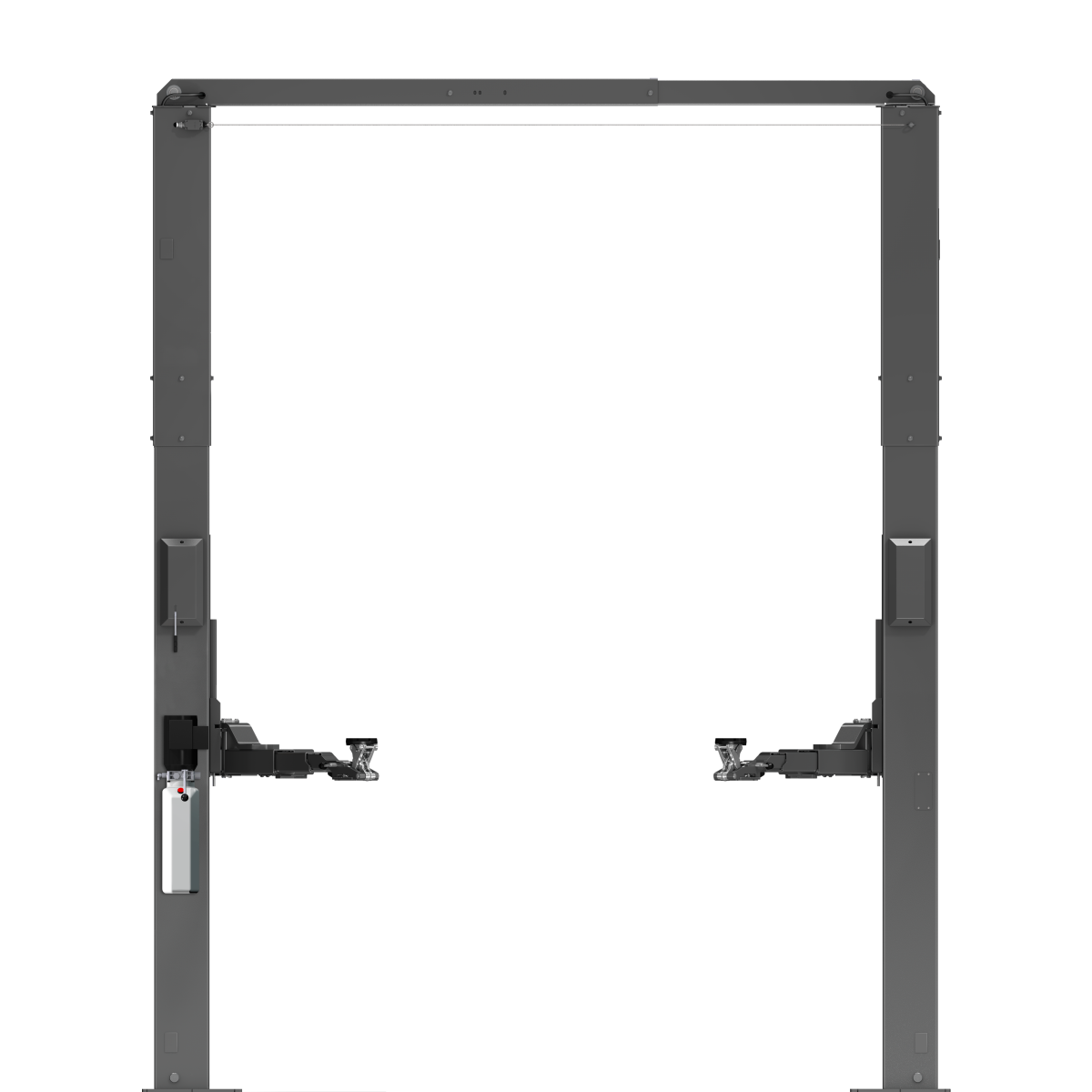

SLH_8_Mechanical_MM_f-RAL7016_grey
Customize Compare
Brief description
Item No: SLH235.0510040U-7016
Lifting capacity: 8000 lb
Type 2 post lifts
Color grey

SLH 8 M MM

The SLH 8 M MM is a fully hydraulic 2 post lifts without base frame for lifting commercial cars and vans.

The asymmetrical support arms with Mini-Max support plates allow easy access to the pick-up points of lowered vehicles, vehicles with deep side skirts or off-road vehicles. After being swiveled in, the support plates can be conveniently lifted to the underbody by foot operation. In addition, in combination with the asymmetrical lifting carriage, they offer optimum door clearance as well as door protection on the columns. The integrated parking position enables controlled lowering of the lifted vehicle as well as convenient and safe working on the vehicle.

  • Space-saving and very flexible
  • High quality hydraulics and long lifecycles
  • Engineering and manufacturing in Germany

Details
capacity 8000 lbs
RAL color RAL 7016
Installation type Mechanical
Lifting time 35 sec
Lowering time 45 sec
Pick up pad height min 2 15/16 - 7 1/4 inch
Min length front arm 22 7/16 - 46 1/16 inch
Min length rear arm 37 - 58 7/8 inch
Clear distance between columns min 95 15/16 inch
Power supply (Ph/V/Hz) 1 Ph / 230 V / 60 Hz
Engine power 4 hp

Datasheets

Datasheet SLH 8 M MM 919 KB

Leaflets

Brochure 2024 SLH 1.4 MB
