SLH 8 M DT

Hydraulic 2 post lifts with double telescopic arms

SLH 8 M DT

Item No:SLH235.0510020U-7016

* examplary

Customize Compare

Brief description

Item No: SLH235.0510020U-7016

Lifting capacity: 8000 lb

Type 2 post lifts

Color grey

SLH 8 M DT

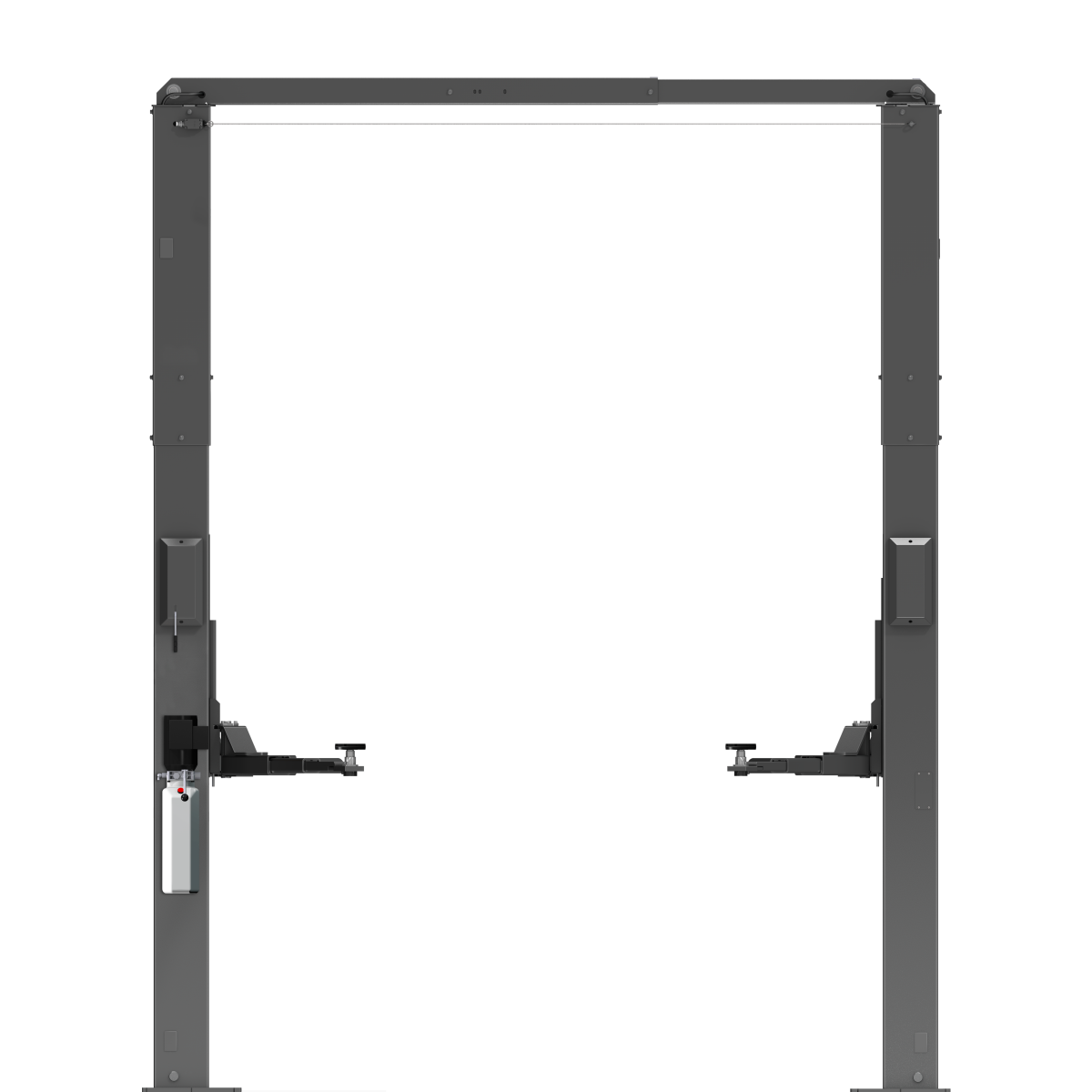

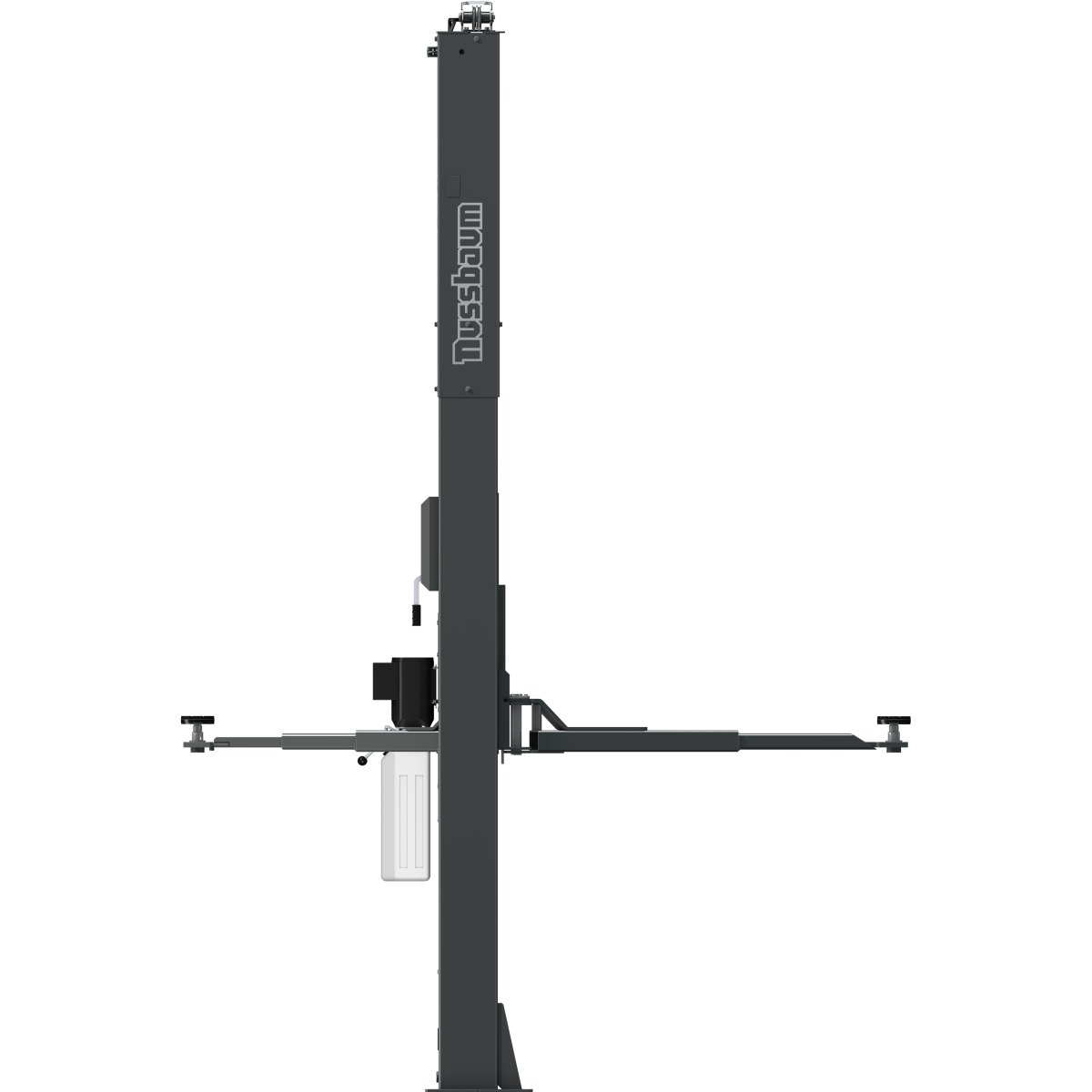

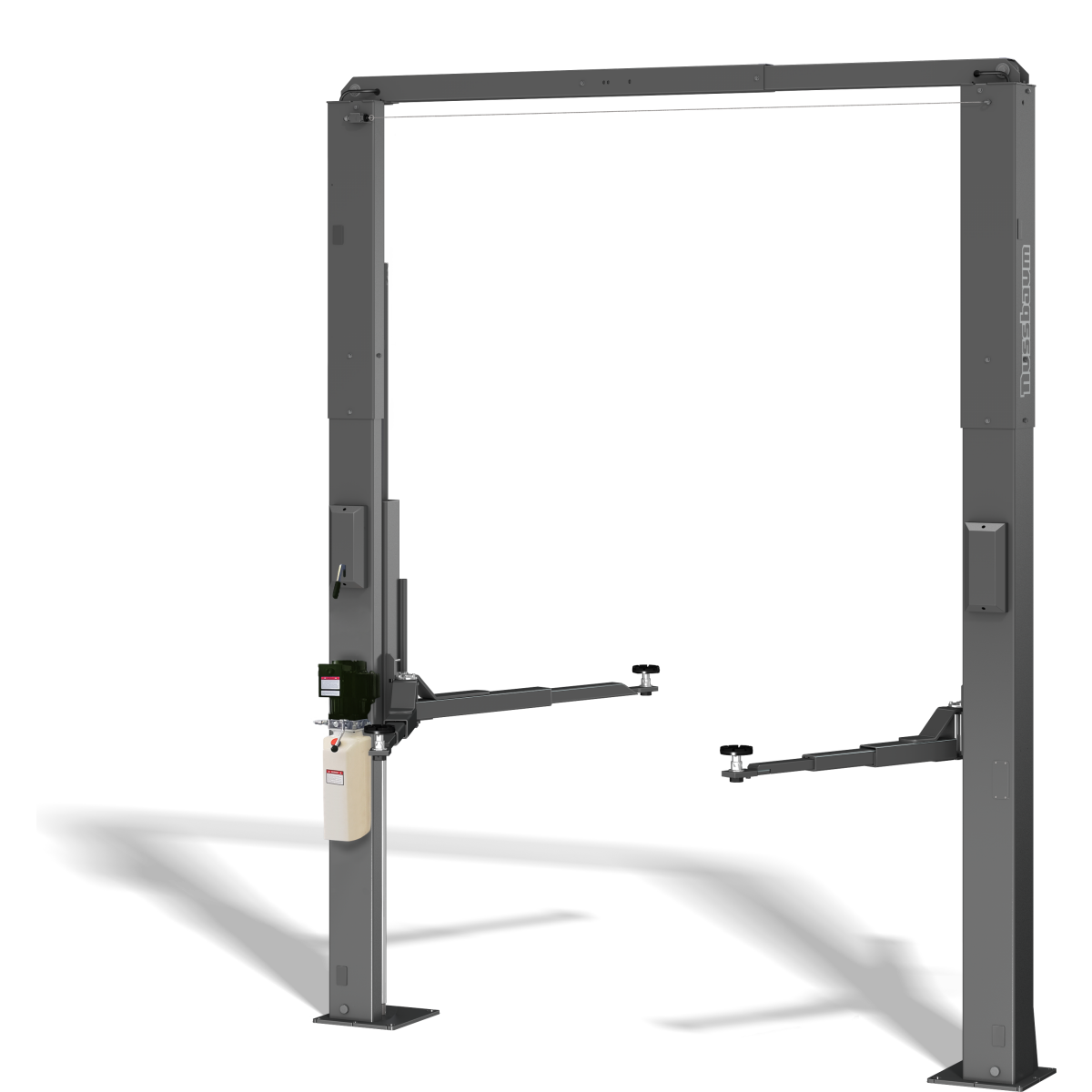

The SLH 8 M DT is a fully hydraulic 2 post lifts without base frame for lifting commercial cars and vans.

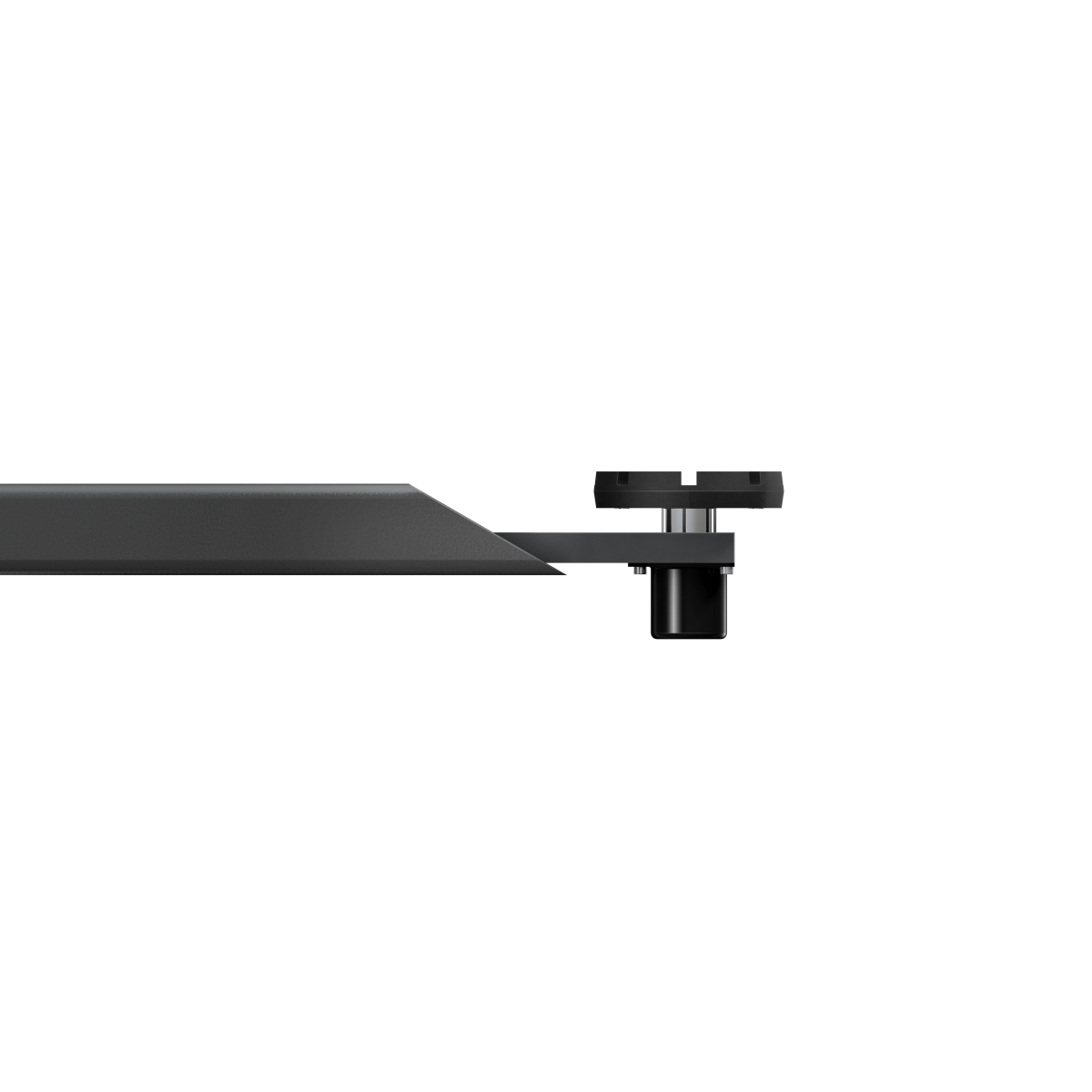

The asymmetrical 2-times telescopic support arms with finely adjustable pick-up plates and quick adjustment (patent pending) allow excellent access to most pick-up points of common vehicle sizes and weight classes. In addition, in combination with the asymmetrical lifting carriage, they offer optimum door clearance as well as door protection on the columns. The integrated parking position enables controlled lowering of the lifted vehicle as well as convenient and safe working on the vehicle.

Space-saving and very flexible
High quality hydraulics and long lifecycles
Engineering and manufacturing in Germany

Details

capacity	8000 lbs
RAL color	RAL 7016
Installation type	Mechanical
Lifting time	35 sec
Lowering time	45 sec
Lifting height	77 3/8 inch
Pick up pad height min	4 - 6 9/16 inch
Min length front arm	22 7/16 - 46 1/16 inch
Min length rear arm	37 - 58 7/8 inch
Clear distance between columns min	95 15/16 inch
Power supply (Ph/V/Hz)	1 Ph / 230 V / 60 Hz
Engine power	4 hp

Datasheets

Datasheet SLH 8 M DT USA

1.1 MB

Leaflets

Brochure 2024 SLH

1.4 MB
