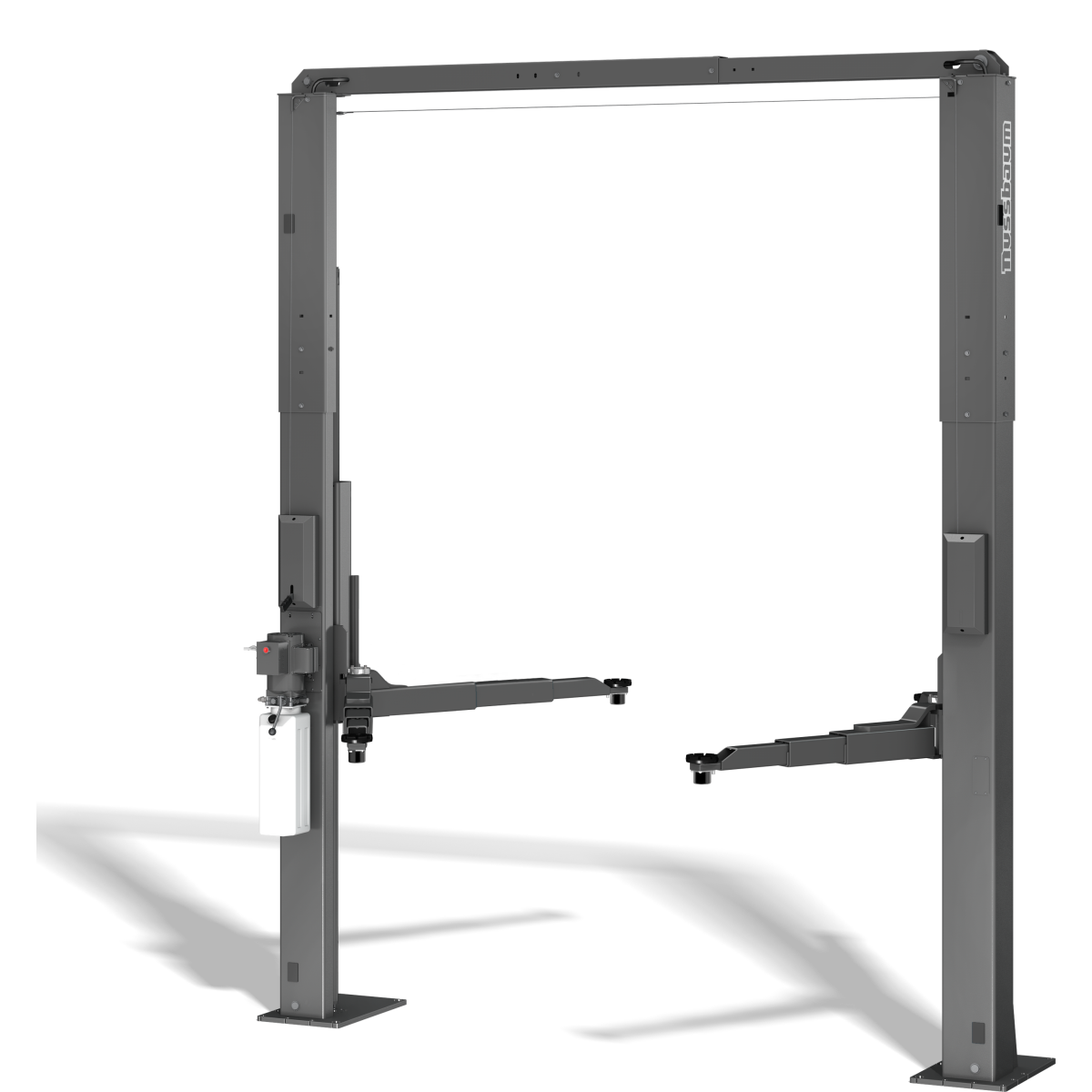

SLH 10 M UNI

Hydraulic 2 post lifts with Universal arms

SLH 10 M UNI

Item No:SLH246.0510010U-7016
SLH 10 M UNI
UNI arm

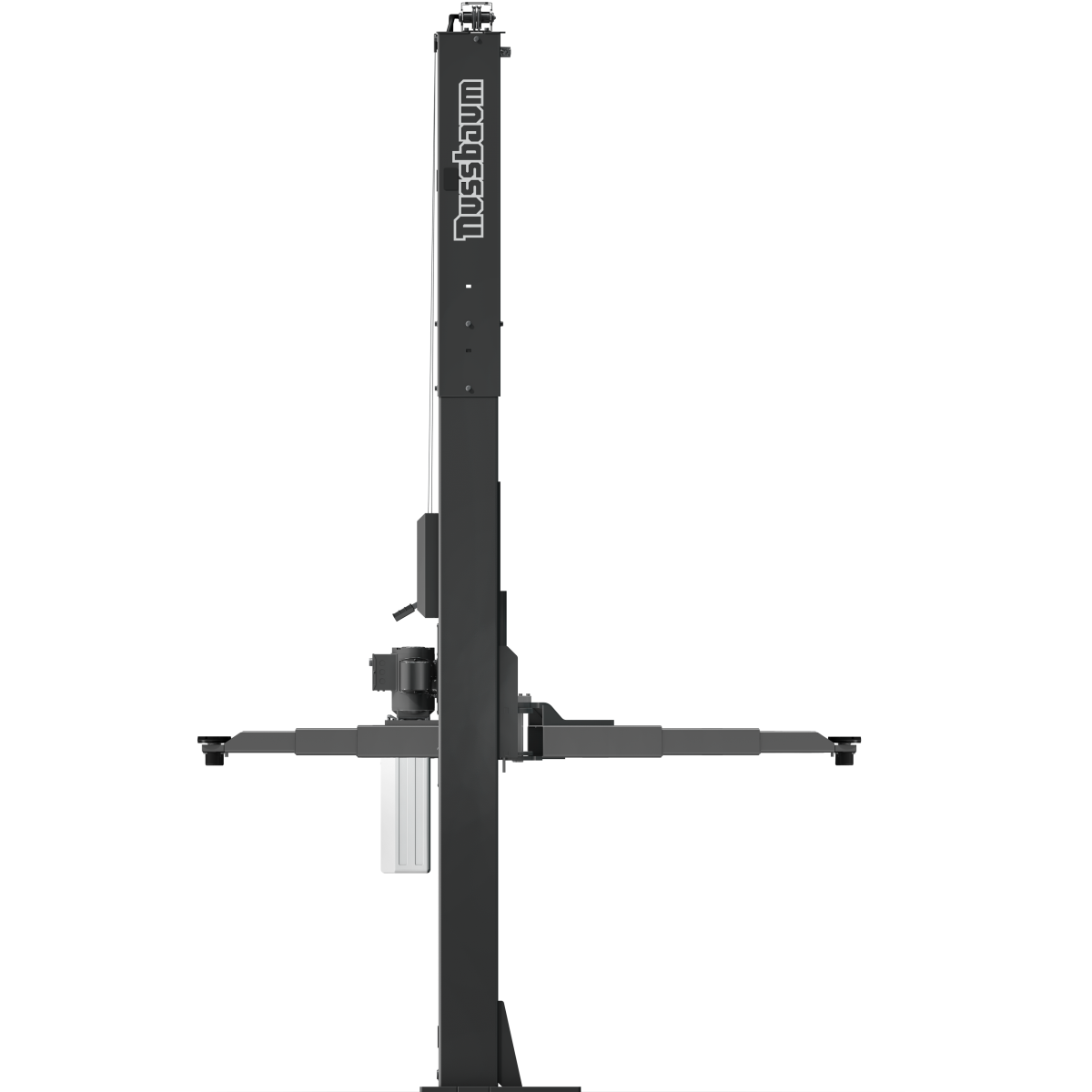

SLH_10_Mechanical_UNI_s-RAL7016_grey

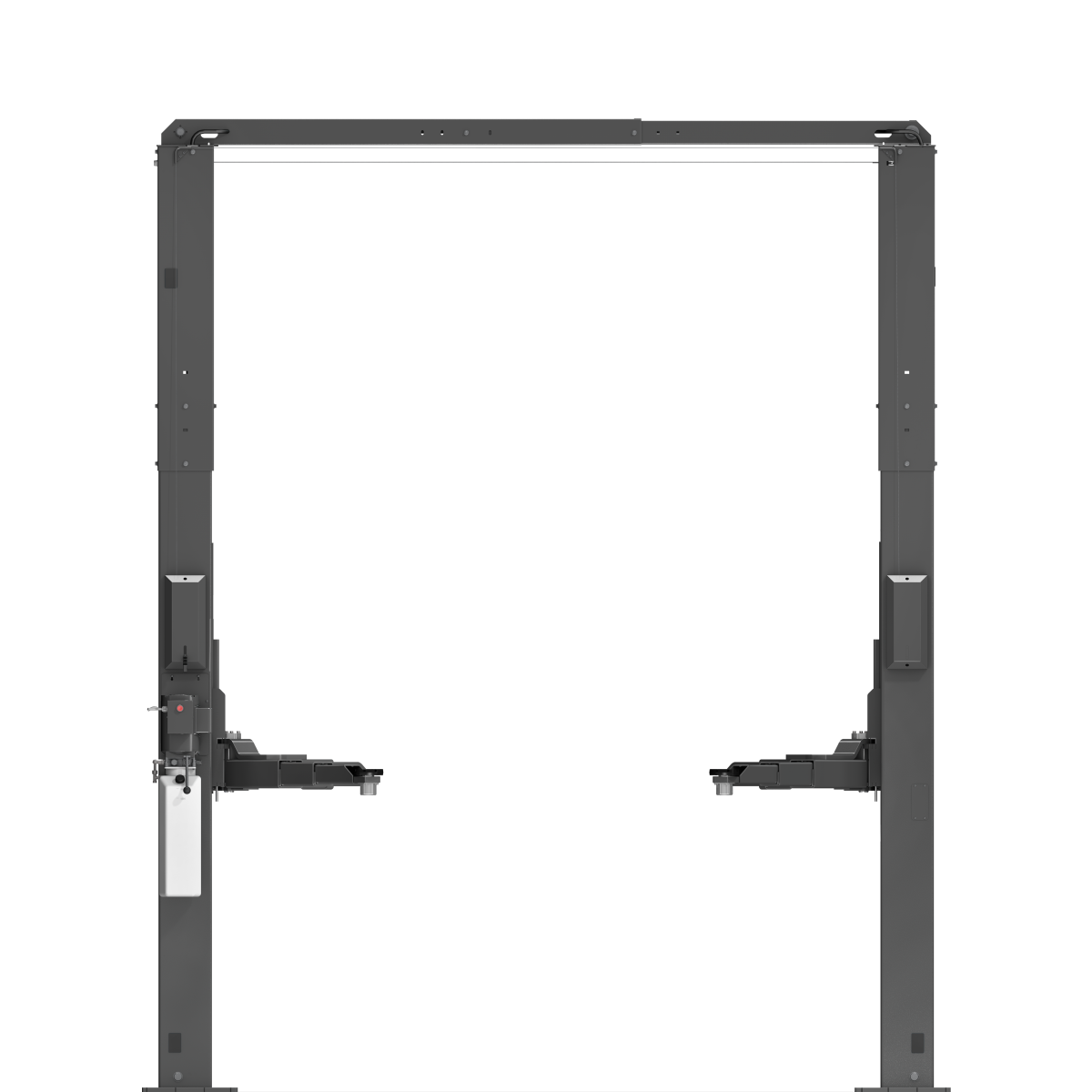

SLH_10_Mechanical_UNI_f-RAL7016_grey
Customize Compare
Brief description
Item No: SLH246.0510010U-7016
Lifting capacity: 8000 lb
Type 2 post lifts
Color grey

SLH 10 M UNI

The SLH 10 M UNI is a fully hydraulic 2 post lifts without base frame for lifting commercial cars and vans.

With the asymmetrical universal arms, consisting of four 2-times telescopic arms, a wide range of vehicle sizes and weights - from small cars up to SUV and vans with medium wheelbase - can be lifted without any problems. In addition, in combination with the asymmetrical lifting carriage, they offer optimum door clearance as well as door protection on the columns. The integrated parking position enables controlled lowering of the lifted vehicle as well as convenient and safe working on the vehicle.

  • Space-saving and very flexible
  • High quality hydraulics and long lifecycles
  • Engineering and manufacturing in Germany

Details
capacity 8000 lbs
RAL color RAL 7016
Installation type Mechanical
Lifting time 35 sec
Lowering time 45 sec
Pick up pad height min 3 1/2 - 4 1/2 inch
Min length front arm 23 1/4 - 34 inch
Min length rear arm 33 - 54 3/8 inch
Clear distance between columns min 99 3/4 inch
Power supply (Ph/V/Hz) 1 Ph / 230 V / 60 Hz
Engine power 4 hp

Datasheets

Datasheet SLH 10 M UNI USA 1.7 MB

Foundation plans

9658NB USA SLH10 Replacement block foundation 149 KB
9659 NB USA SLH10 Replacement foundation full width 162 KB

Leaflets

Brochure 2024 SLH 1.4 MB
