SLH 12 M UNI

Hydraulic 2 post lifts with Universal arms

SLH 12 M UNI

Item No:SLH255.0501010U-7016

* examplary

Customize Compare

Brief description

Item No: SLH255.0501010U-7016

Lifting capacity: 12000 lb

Type 2 post lifts

Color grey

SLH 12 M UNI

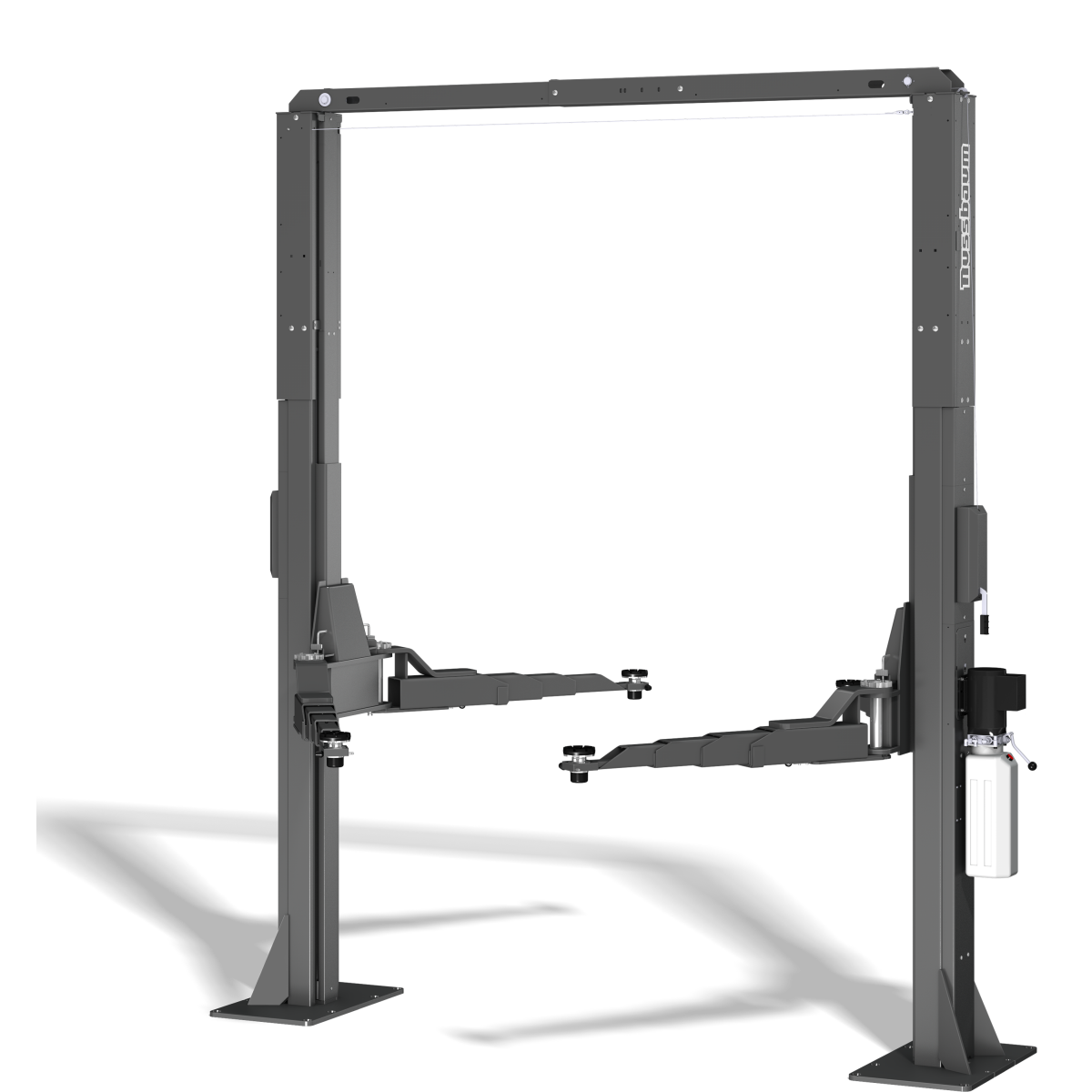

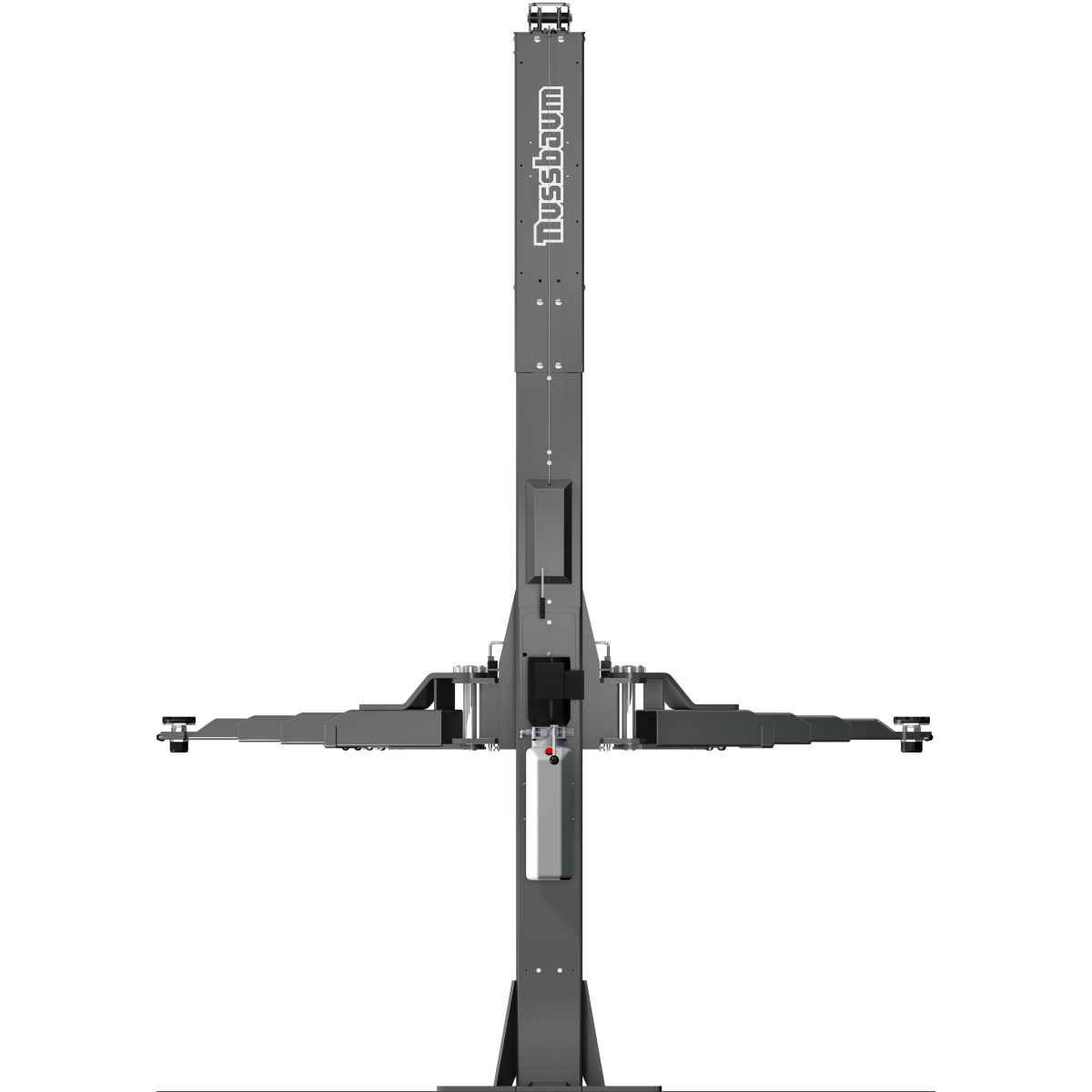

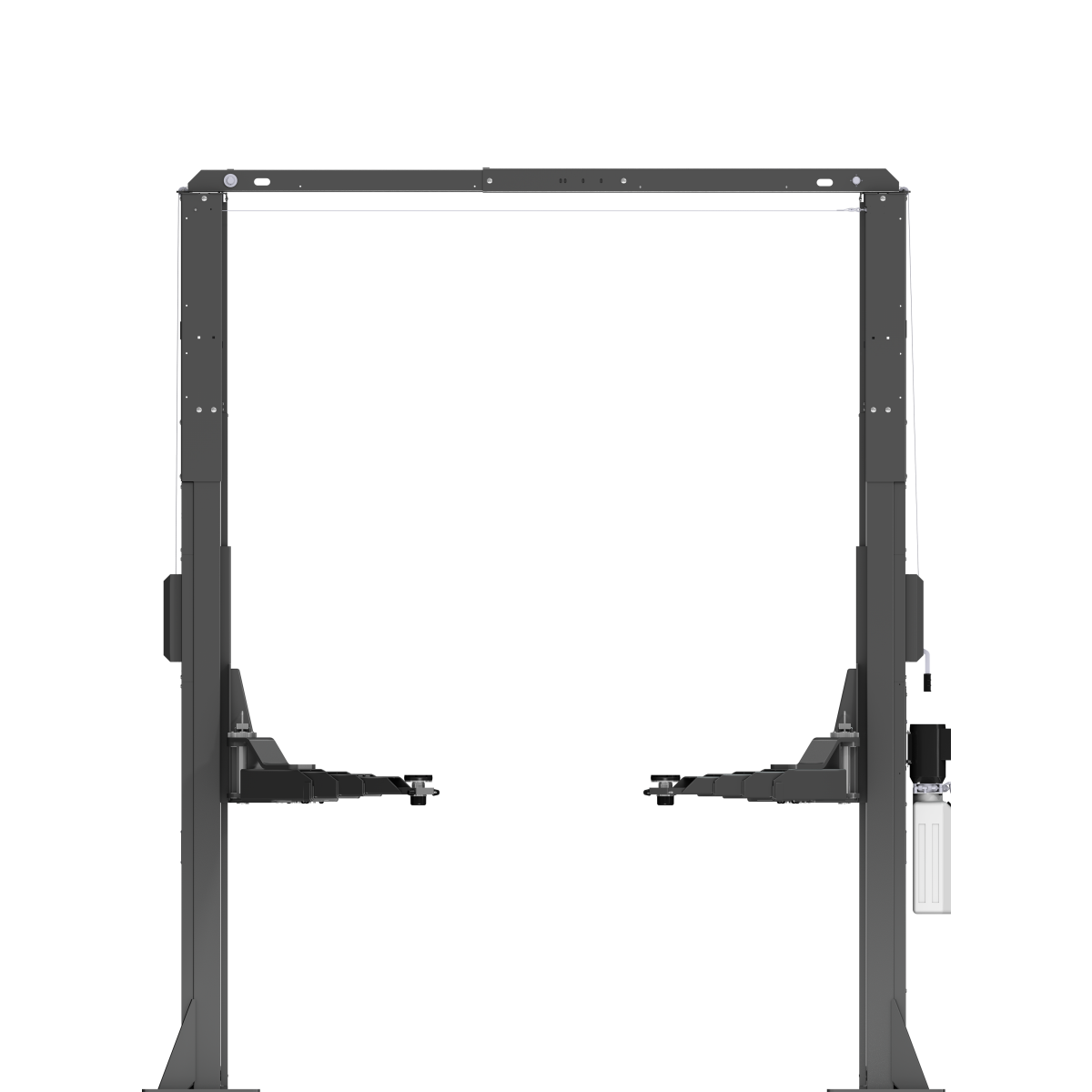

The SLH 12 M UNI is a fully hydraulic 2 post lifts without base frame for lifting commercial cars and vans.

With the asymmetrical universal arms, consisting of four 2-times telescopic arms, a wide range of vehicle sizes and weights - from small cars up to SUV and vans with medium wheelbase - can be lifted without any problems. In addition, in combination with the asymmetrical lifting carriage, they offer optimum door clearance as well as door protection on the columns. The integrated parking position enables controlled lowering of the lifted vehicle as well as convenient and safe working on the vehicle.

Space-saving and very flexible
High quality hydraulics and long lifecycles
Engineering and manufacturing in Germany

Details

capacity	12,000 lb
RAL color	RAL 7016
Installation type	Mechanical
Lifting time	33 sec
Lowering time	28 sec
Lower swivelling height	5 1/16 - 8 inch
Length front arm	27 1/4 - 66 7/8 inch
Length rear arm	27 1/4 - 66 7/8 inch
Clear distance between columns	109 3/8 inch
Power supply (Ph / V / Hz)	1 Ph / 230 V / 60 Hz
Engine power	4 hp

Datasheets

Datasheet SLH 12 A+P UNI

4.6 MB

Leaflets

NAL POWER LIFT SLH

1.4 MB
