Available in two different lifting heights 73.5" and (XL) 80.5"


Item No:SPM2080.010-5001
SPL9 low Nussbaum 0424 Shot30 V2 compressed
SPL9 low Nussbaum 1047 V2
SPL9 low Nussbaum 1052 V2
SPL9 low Nussbaum 1077 V2

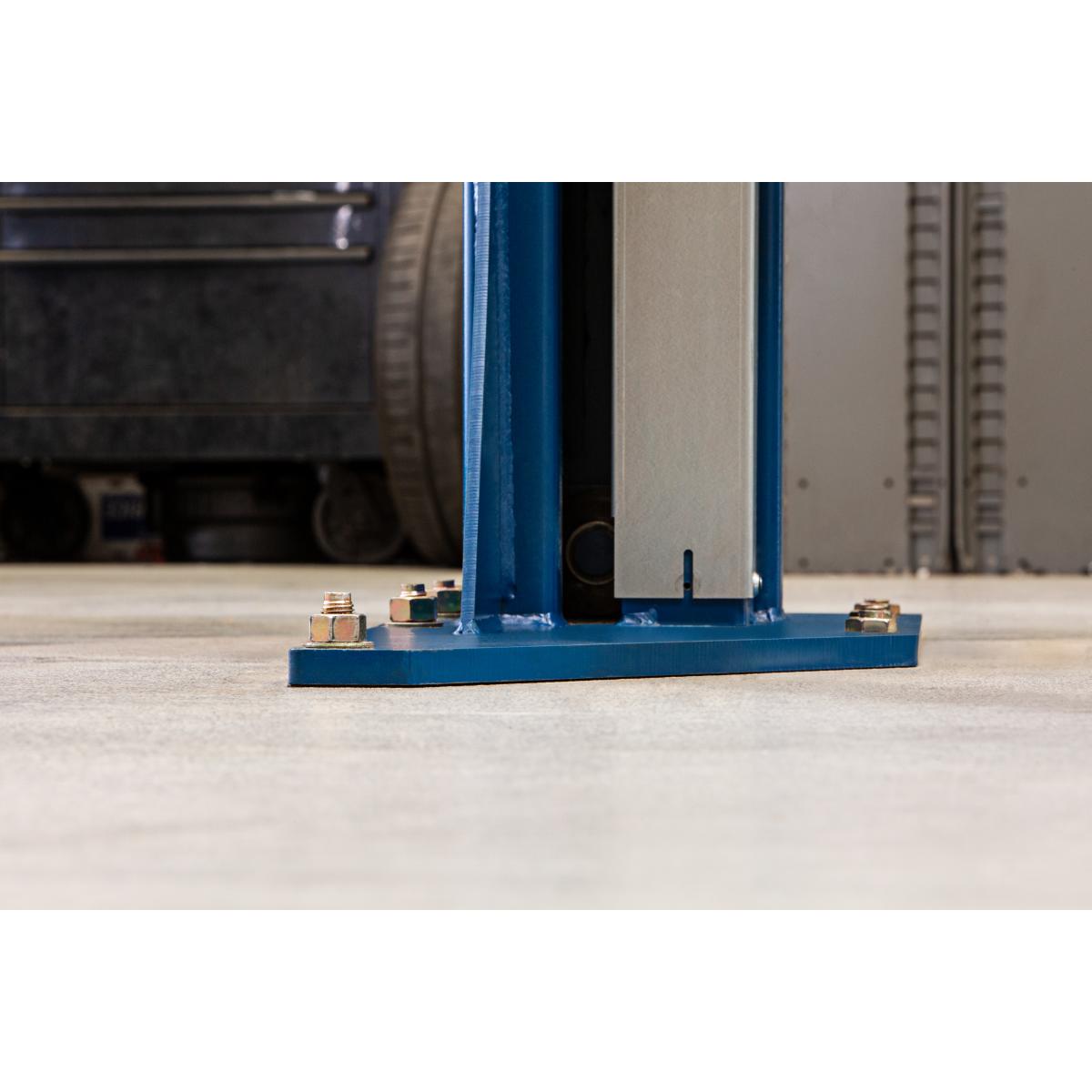

2 Post Baseplate Nussbaum 1003

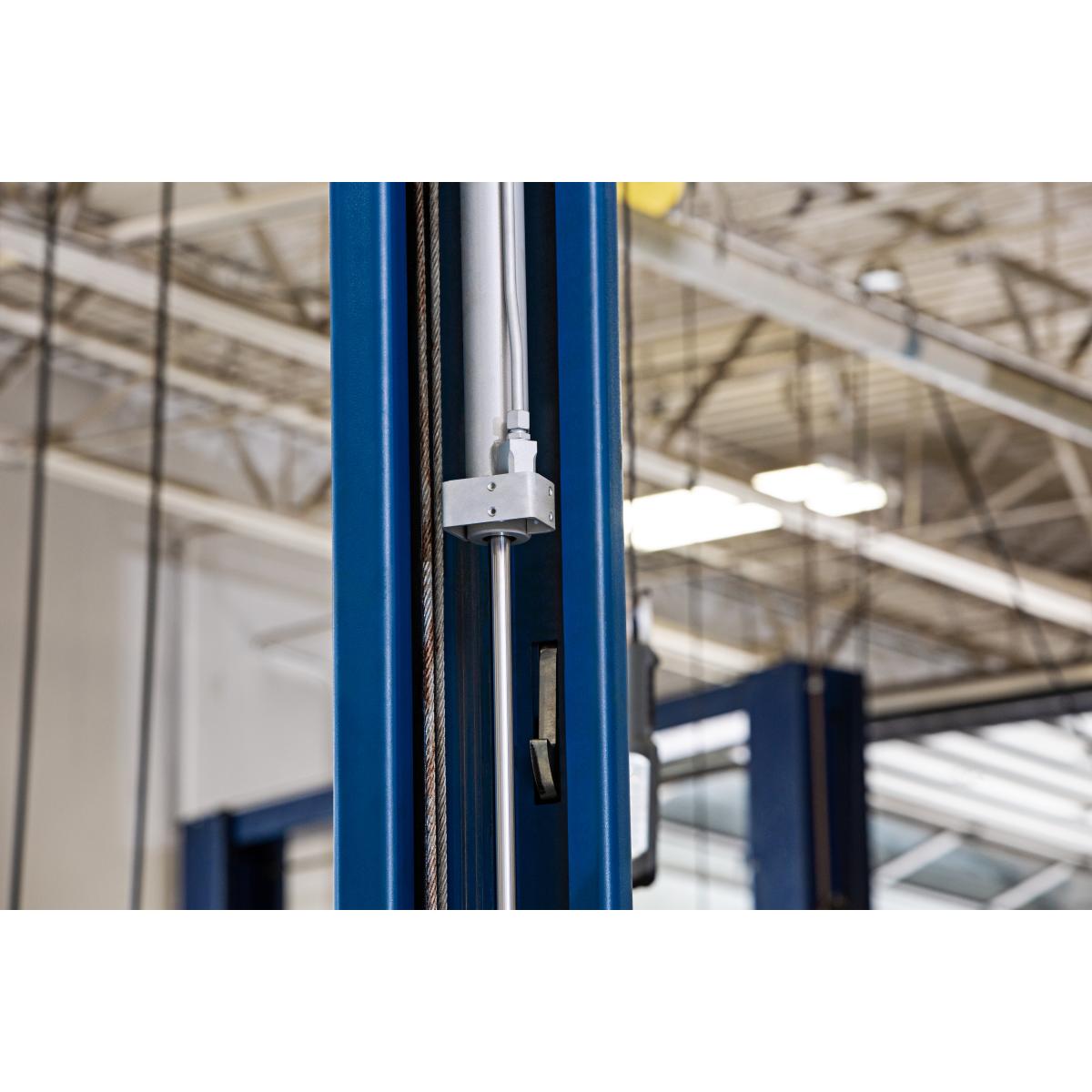

2 Post Cylinder Nussbaum 1136

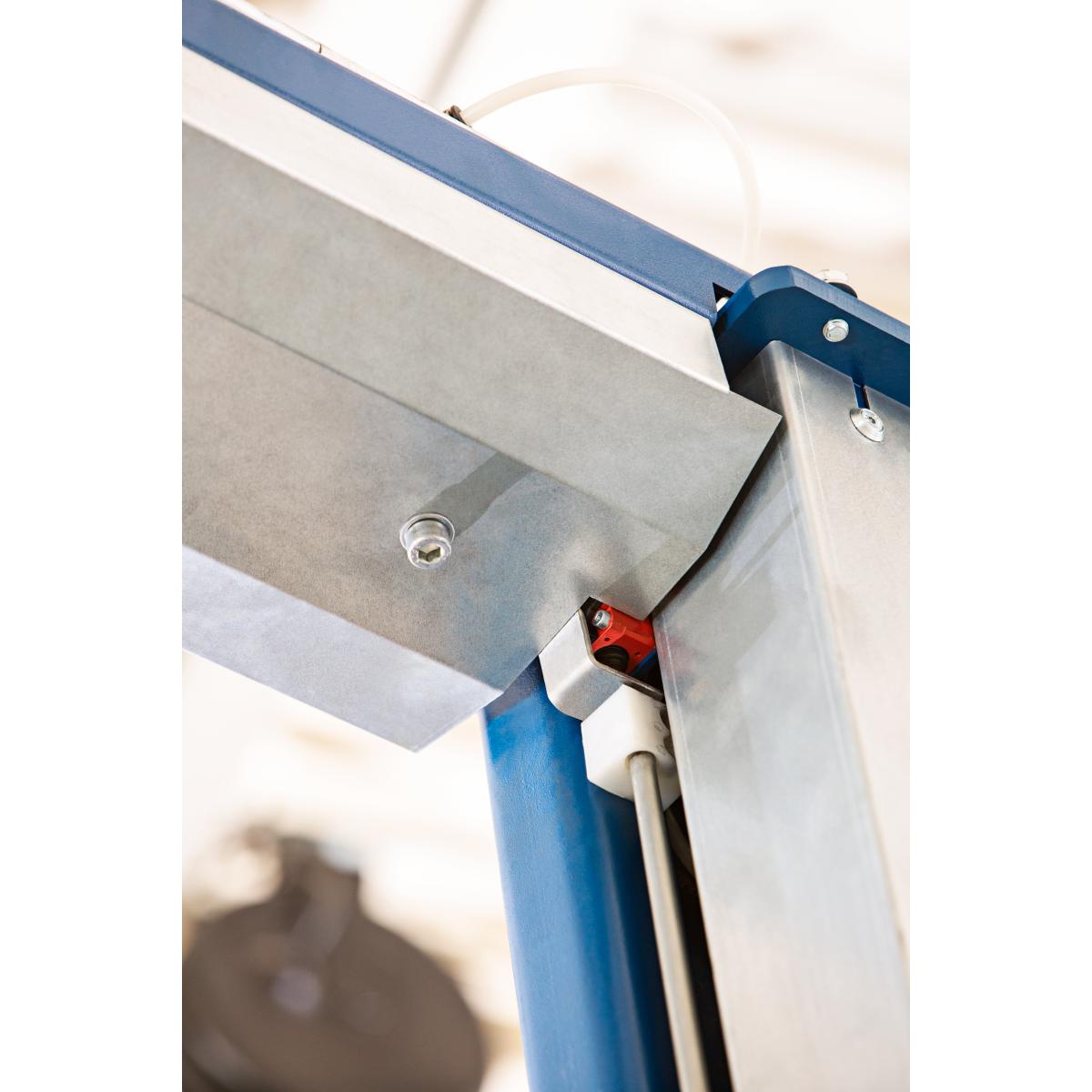

Overhead Shutoff Nussbaum 1104

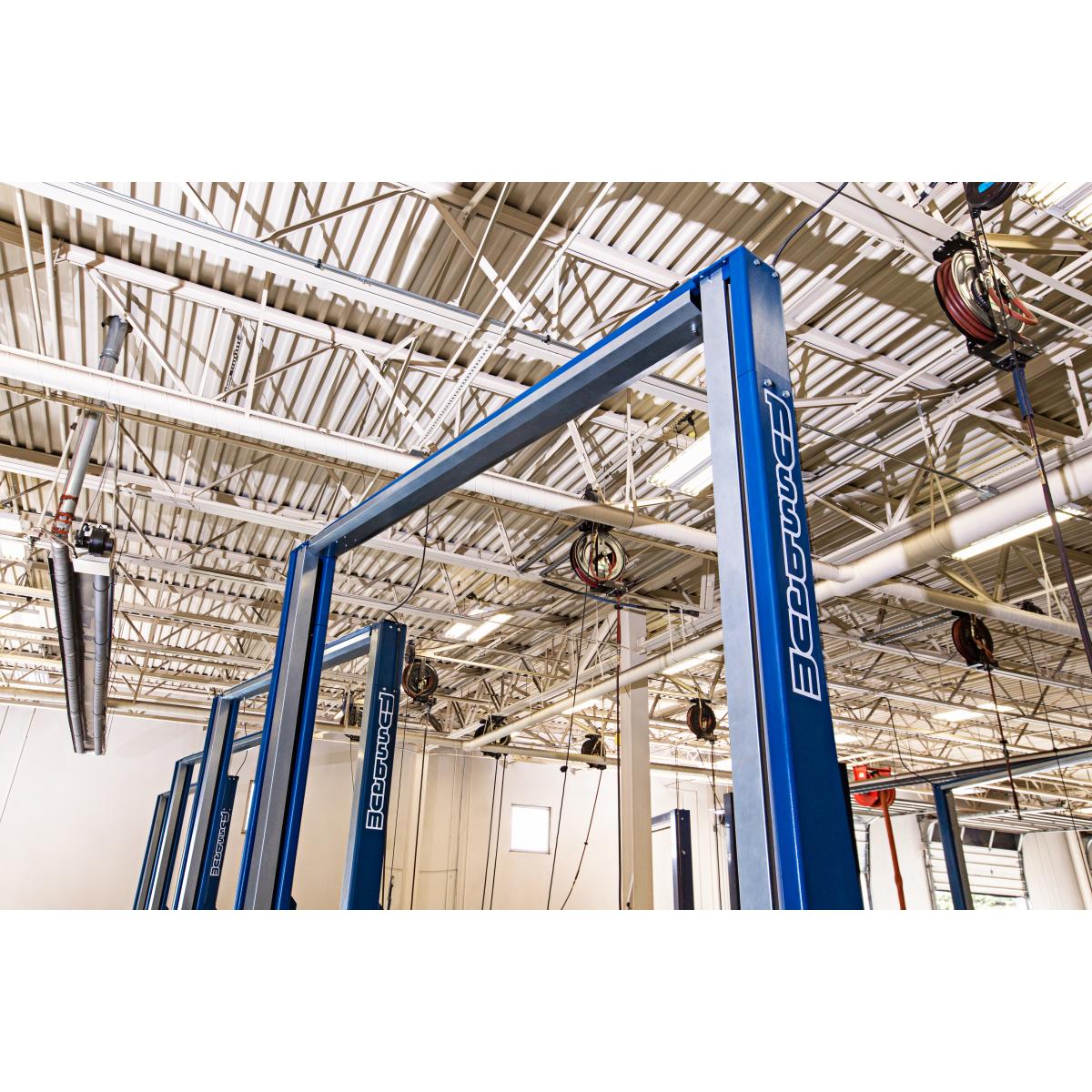

Overhead Shutoff Nussbaum 1161 V2
SPL9 low Nussbaum 0426 Shot31 V2 v2
More info
Customize Compare
Brief description
Item No: SPM2080.010-5001
Lifting capacity: 7700 lb
Type 2 post lifts
Color Bleu


The SPL 8 LO-PRO is a hydraulic asymmetric two post lift with a lifting capacity of 7,700 pounds and low profile arms. This two post lift features a powerful 3.5 hp integrated power unit and covered hard-chromed cylinders, making it a precisely engineered mix between durability and appearance.

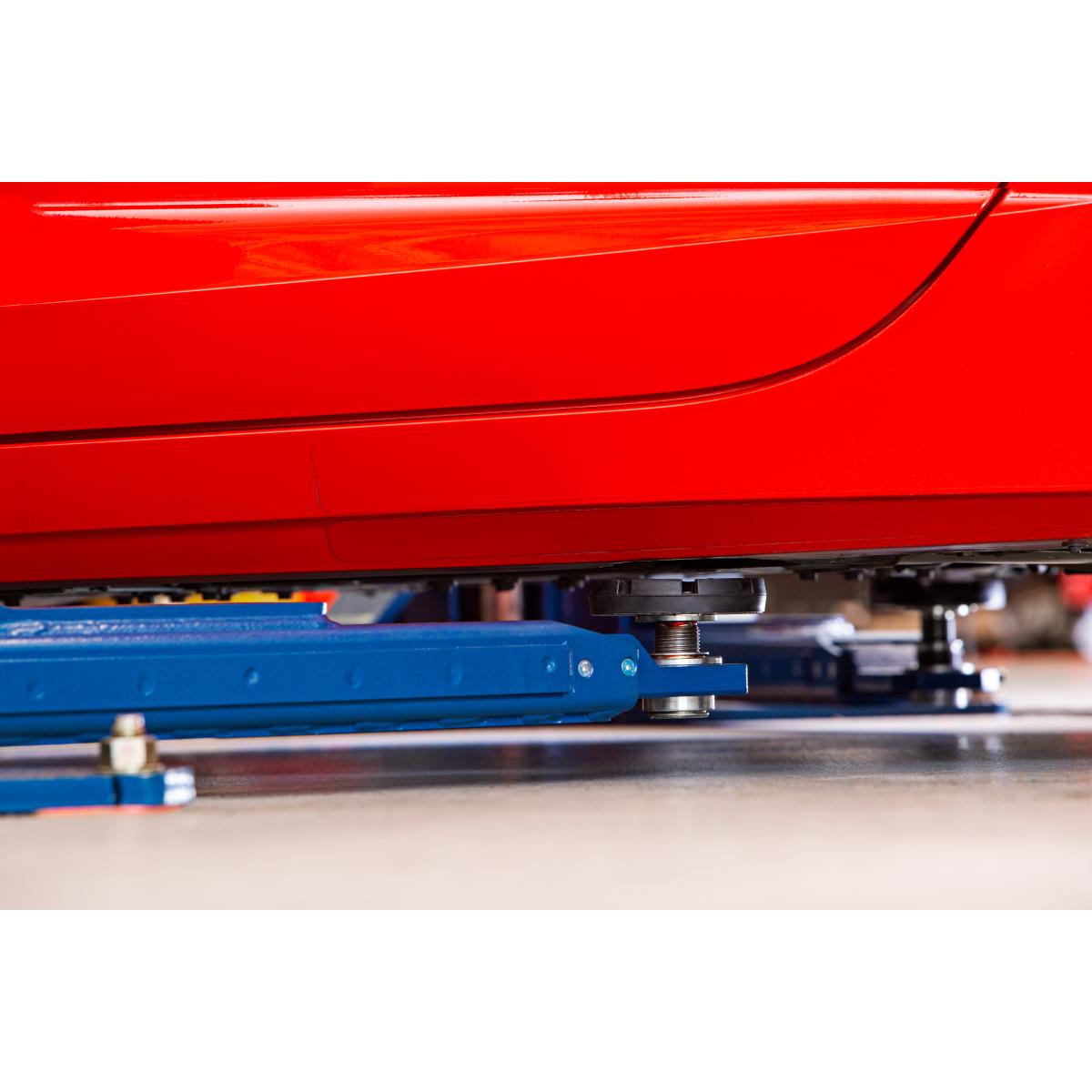

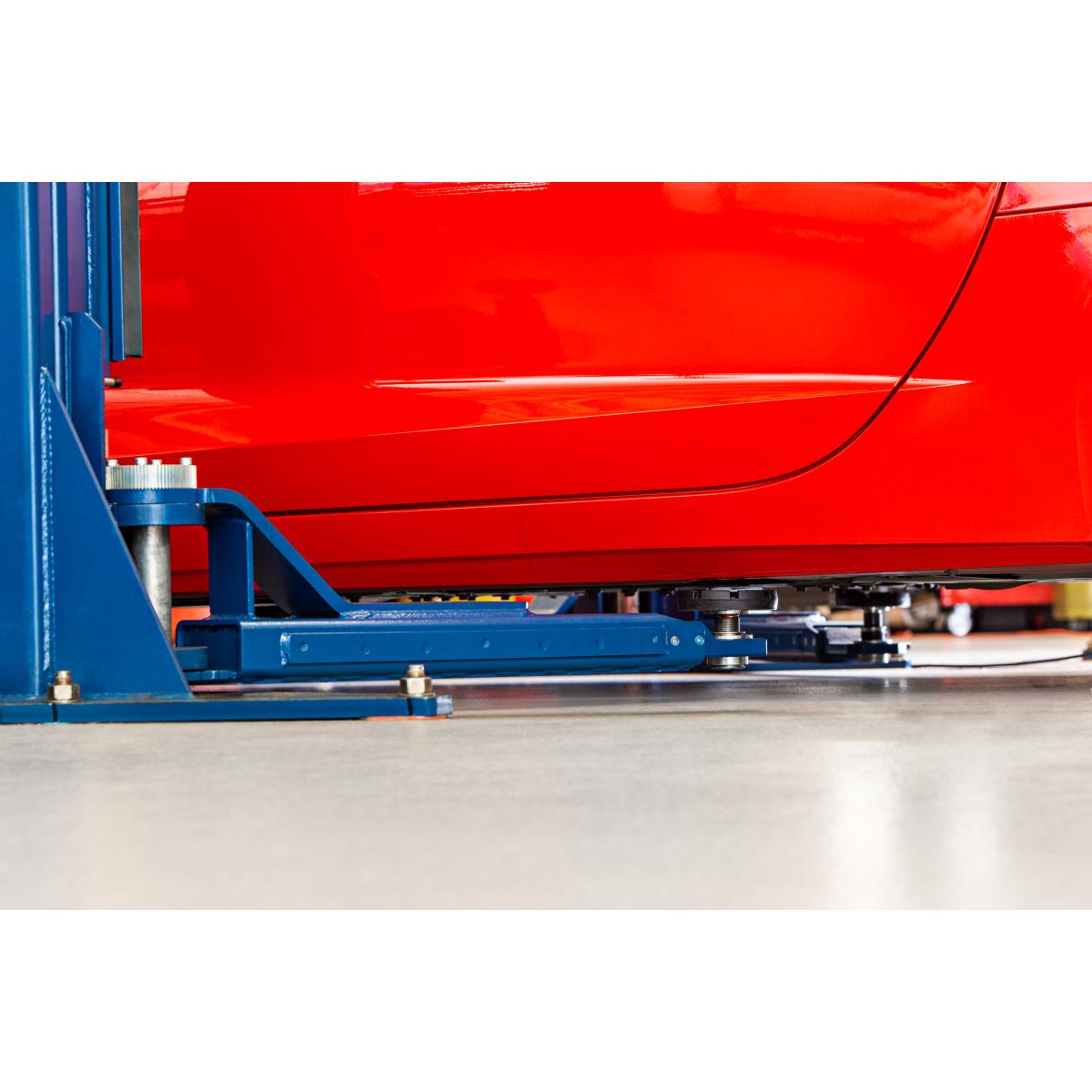

The Nussbaum low profile arms for the SPL 8 LO-PRO are specially designed to reach under lowered chassis. They access hard-to-reach lift points with ease, making it safe and simple to service more vehicle types.

With lowered sports cars, sedans, hatchbacks and other track vehicles being more popular now than ever, you need the ability to service these cars without scraping side skirts or turning down customers. Our low profile arms feature telescoping arm channels that are significantly lower off the ground, so once a vehicle's lift points have been accessed, there is no bulging bulk of steel that could scrape the car. Low profile arms are also ideal for vehicles with lift points at the outer edges of a vehicle's wheelbase.

The SPL 8 LO-PRO with it’s TRUE asymmetric design has virtually the same drive thru width as other lifts but has an overall width up to 20″ narrower than the competition.

For long life and durability, only hard steel hydraulic lines are used. They will not wear and age like flexible hydraulic hoses!

The SPL 8 LO-PRO contains a high performance power unit with adjustable lowering speed through a single control lever, which allows for safer lifting and lowering! And the lift automatically shuts off when it reaches highest position, or at the highest vehicle height, eliminating pump fatigue.

The SPL 8 LO-PRO two post lift is the perfect automotive lift for your shop. With our manufacturing facility in North Carolina, these two post lifts are readily available for fast delivery and proudly MADE IN THE USA.


  • Narrow bay setting at 124 ″ allows most efficient use of bay space in the industry without losing drive through width
  • Fast lifting and lowering times
  • Variable lowering speed with manual control lever
  • Mechanical security locks
  • Hard-chrome cylinder guarantees extreme long-life cycle
  • Productive coverings for column cylinders provide safer operation and clean shop appearance
  • Asymmetrical two post vehicle lifting
  • Low maintenance and almost wear-free cylinder
  • Designed for short and long wheelbase vehicles

Capacity 7,700 lb
Pick up pad height min 3 inch
Front arms extension min-max 23.2 - 34 inch
Rear arm extension min-max 33 - 54.3 inch
Inside column width 105 inch
Lifting height 73.5 inch
Overall width min 120 - 124 inch
Drive-through width min 94.75 inch
Total height min 143 inch
Power supply (V/ph) 208/230 / 1 ph
Motor power 3.5 hp


SPL LPA DataSheet 84 KB

Inspection books

SPL 10000 Spare Parts Catalog 1.7 MB
SPL 10000IOM rev4 10 1 2019 1.8 MB


SPL 8 Lo Pro Brochure 2020 compressed 842 KB
Wooden pallet
Packaging Wooden pallet
Product Dimensions 143in x 42in x 20in
Total weight 1700lb
Stackable 4
