Jumbo HFK 7000

Jumbo HFK 7000

Item No:JLUSHFL070.010-9005
Jumbo HFK 7000

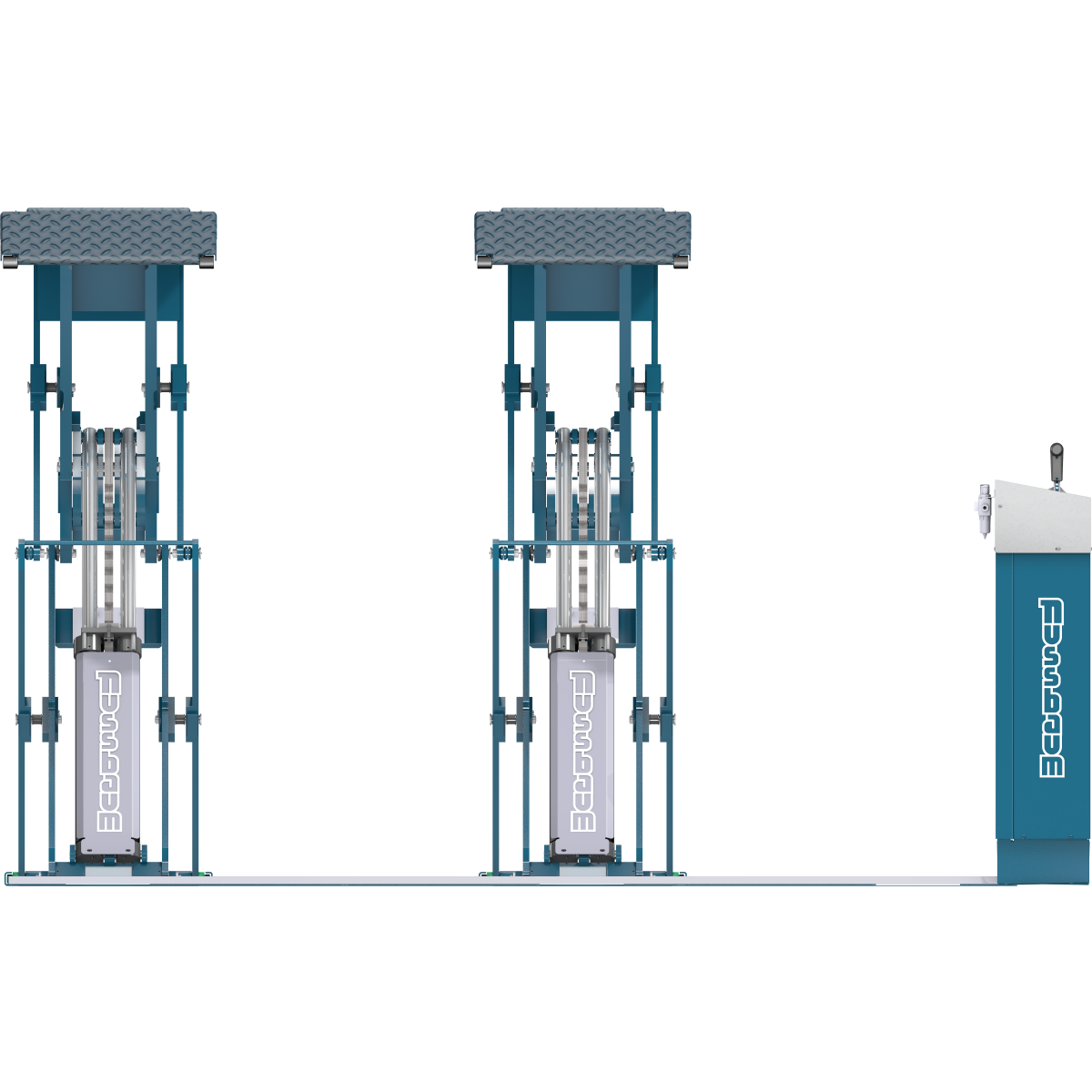

Jumbo F

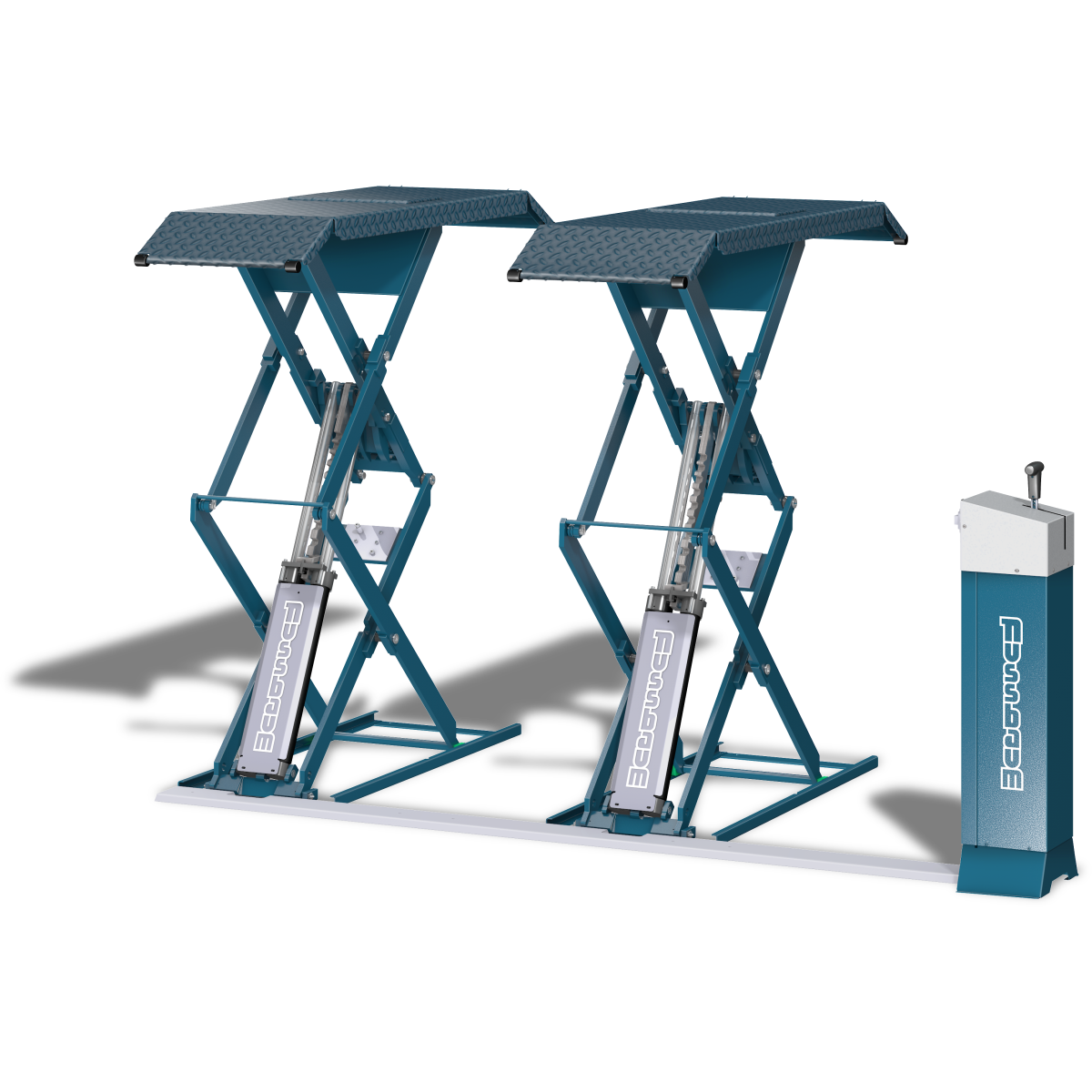

Jumbo P2

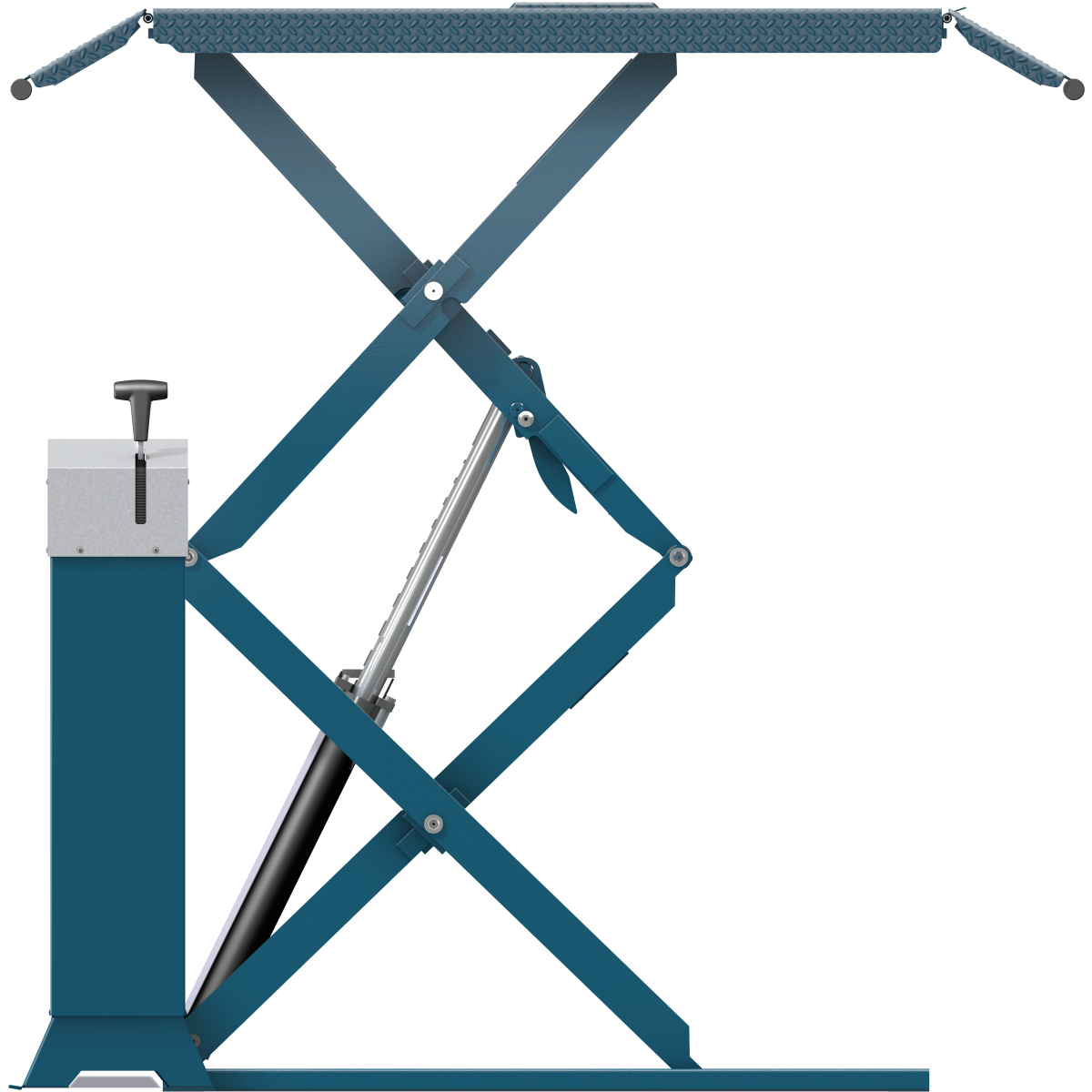

Jumbo S
ALI Validated Logo
More info
Customize Compare
Brief description
Item No: JLUSHFL070.010-9005
Lifting capacity: 7000 lb
Type Double Scissor Lifts
Color Black

Jumbo HFK 7000

The hydraulic double scissor lift Jumbo HFK 7000 with a capacity of 7,000 is the perfect ALI certified all-round lift for car workshops where speed, flexibility and reliability are in demand. With its small space requirement, its high lifting height of 79, the length-adjustable platforms, flat design, mechanical lock, and Hyperflow technology, it is the lift that no professional car workshop should be without. Whether for tire changes, oil changes, work on the engine or inspection, for low-lying sports cars, SUVs or vans, the Jumbo HFK 7000 is ready to lift at lightning speed. The drive-on ramps can be unlocked and locked by one-hand operation in order to extend or shorten the platform. Jumbo HFK 7000 is manufactured right here in the USA in Gastonia, North Carolina.

  • Lifting time: seconds
  • Capacity: 7,000 lbs
  • Effective lifting height of 79 inch
  • Extremely flat construction: Drive-on height of only 4 inch
  • Length-adjustable mounting - drive-on ramps can be locked and unlocked by one-hand operation
  • Flexible mounting: Adjustabl guaranteed quality: Power unit, hydraulic cylinder and the complete lifting platform are e width, no compressed air access required
  • 360° access
  • Can also be installed flush with the floor
  • Three timestested before dispatch.
  • Developed and manufactured in the USA


All hydraulic Jumbo lifts are equipped with two redundant hydraulic circuits as standard. The Jumbo HFK 7000 is not only safe, but also exceptionally flexible and can be installed in different installation widths as required. The Jumbo HFK 7000 requires no compressed air at all. The four hydraulic cylinders require very little energy. The control unit is connected to the lift only by the hydraulic hoses and can be positioned freely around the lift. The hydraulic hoses can be mounted on the workshop floor or in a protective metal housing on the floor as required. The double scissors are welded in Nussbaum's own state-of-the-art welding facilities. Your lifting platform is protected against dirt and weather for a long time.

Details
Capacity 7,000 lb
Platform length min 57.5 - 81 inch
Lifting height 79 inch
Platform width 24 inch
Drive on height 4 inch
Overall width min 79.5 inch
Power supply (V/ph) 208/230 / 1
Motor power 3 hp

Datasheets

Jumbo HF 7 Flush Kit 2 MB
Sales Sheet Jumbo 320 KB

Inspection books

Jumbo HFK ALI Manual 3 29 21 1.8 MB

Leaflets

Sales Sheet Jumbo 320 KB
Wooden crate
1
Packaging Wooden crate
Product Dimensions 70in x 30in x 35in
Total weight 2050lb
Stackable 3
