OTTO 8 LO-PRO

OTTO 8 LO-PRO

Item No:HLNT280.010-5001
OTTO 8 LO-PRO
OTTO 8 1
OTTO 8 2
OTTO 8 3
More info
Customize Compare
Brief description
Item No: HLNT280.010-5001
Lifting capacity: 8000 lb
Type OTTO Lifts
Color

OTTO 8 LO-PRO

The HF NT series is a revolutionary hydraulic two post lift. The patented HyperFlow® technology allows the lift to be perfectly and automatically synchronized without cables or pulleys. With the combined safety of the double hydraulic circuit with 4 cylinders and mechanical locking system, this lift contains the ultimate in lifting safety. We refer to this as our "3S- Triple Safety System. This new generation of lifts are the perfect solution to increase the productivity and efficiency of the workshop while reducing cost of ownership.

The OTTO 8 Low Pro innovative design gives you pick up points and arm extensions that allow you to work on an amazing variety of vehicles. The arms are a combination of 3 stage front arms and rear double jointed arms with the low profile design made of solid steel. This gives you the ability to pick up extremely long and wide vehicles and to reach outer pickup points, which gives you a lot of space to work underneath the vehicle.

OTTO 8 LO-PRO FEATURES:

  • No Equalization Cables: Patented HyperFlow® technology allows the lift to equalize itself each time it reaches its top position. This innovation means your lift is safer as a broken cable can drop a car. It also means you can save up to $2,000 over the life of the lift on inspection fees and cable replacements.
  • Fast lifting and lowering times guarantee high cost effectiveness
  • Powerful and uniform lifting with control lever
  • No floor connection and no top static connection of the columns
  • NT System: Two independent hydraulic circuits in combination with mechanical lock for maximum safety
  • Hyperflow Technology: synchronization without cables or pulleys and self equalization
  • Nearly wear-free hydraulic cylinders
  • Attractive design – sleek columns and galvanized cylinder covers

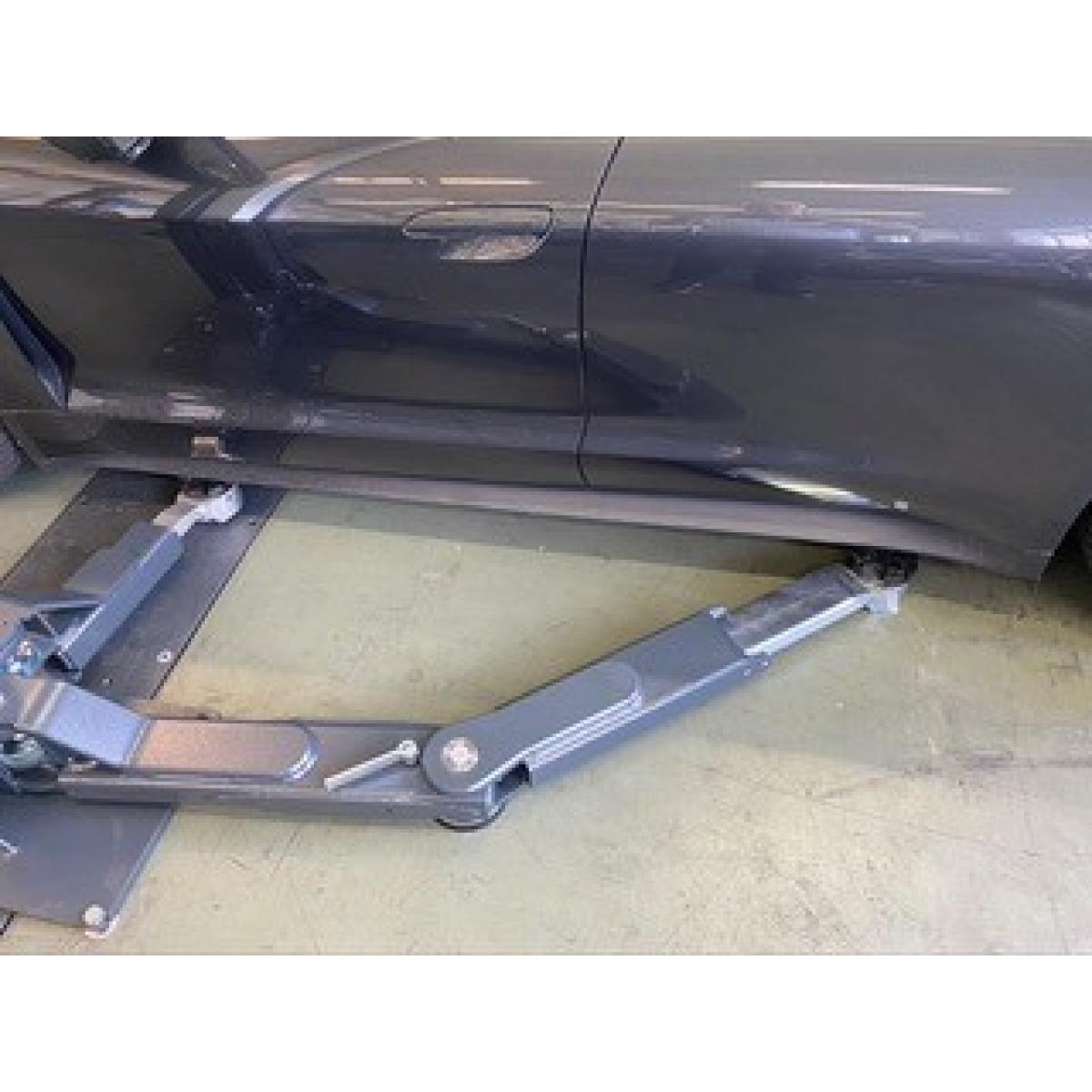

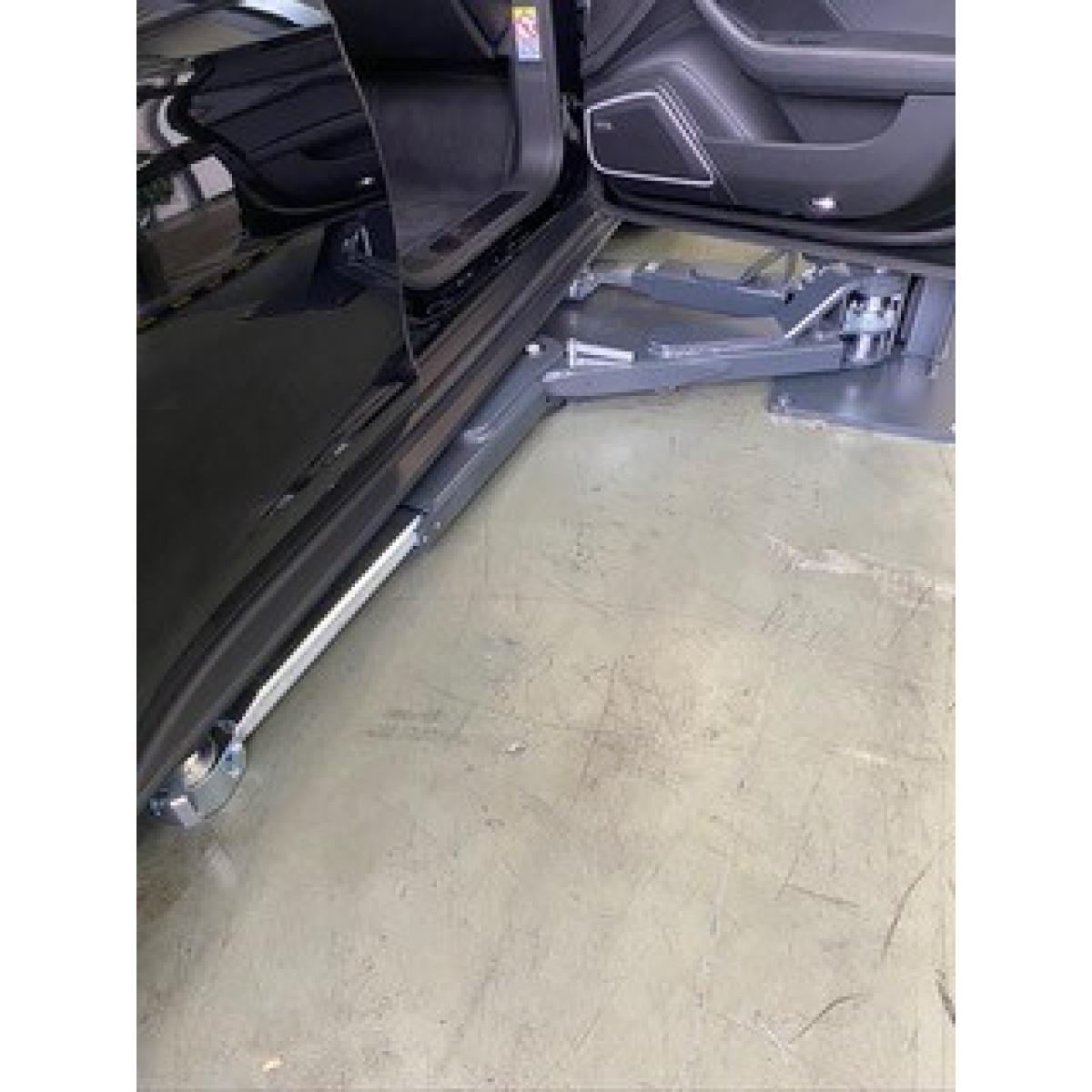

  • Innovative double jointed arms with low profile lifting points provide extreme versatility and ease of use
  • Low noise oil-submerged motor

Details
Capacity 8000 lb
Pick up pad height min 4.5-7.5 inch
Front arms extension min-max 22.5-46.5 inch
Rear arm extension min-max 0-71.75 inch
Column height 158.5 inch
Lifting height 80.75 inch
Drive-through width min 99.10 inch
Power supply (V/ph) 208/230 1 Ph
Motor power 3 hp

Datasheets

OTTO 8 Lo Pro Data Sheet 225 KB

Leaflets

HFNTK Sales Sheet 2.7 MB
Wooden crate
1
Packaging Wooden crate
Product Dimensions 160in x 30in x 20in
Total weight 1600lb
Stackable
