OTTO 18

OTTO 18

Item No:HL2180.034-5001
OTTO 18
2 post lift Power Lift HDL 6500 DG s NB RAL7016 grey
DSC 0018
DSC 0020
DSC 0022
DSC 0024
DSC 0025
DSC 0026
DSC 0029
DSC 0031
DSC 0032
Positionsueberlagerung 1
More info
Customize Compare
Brief description
Item No: HL2180.034-5001
Lifting capacity: 18000 lb
Type 2 post lifts
Color

OTTO 18

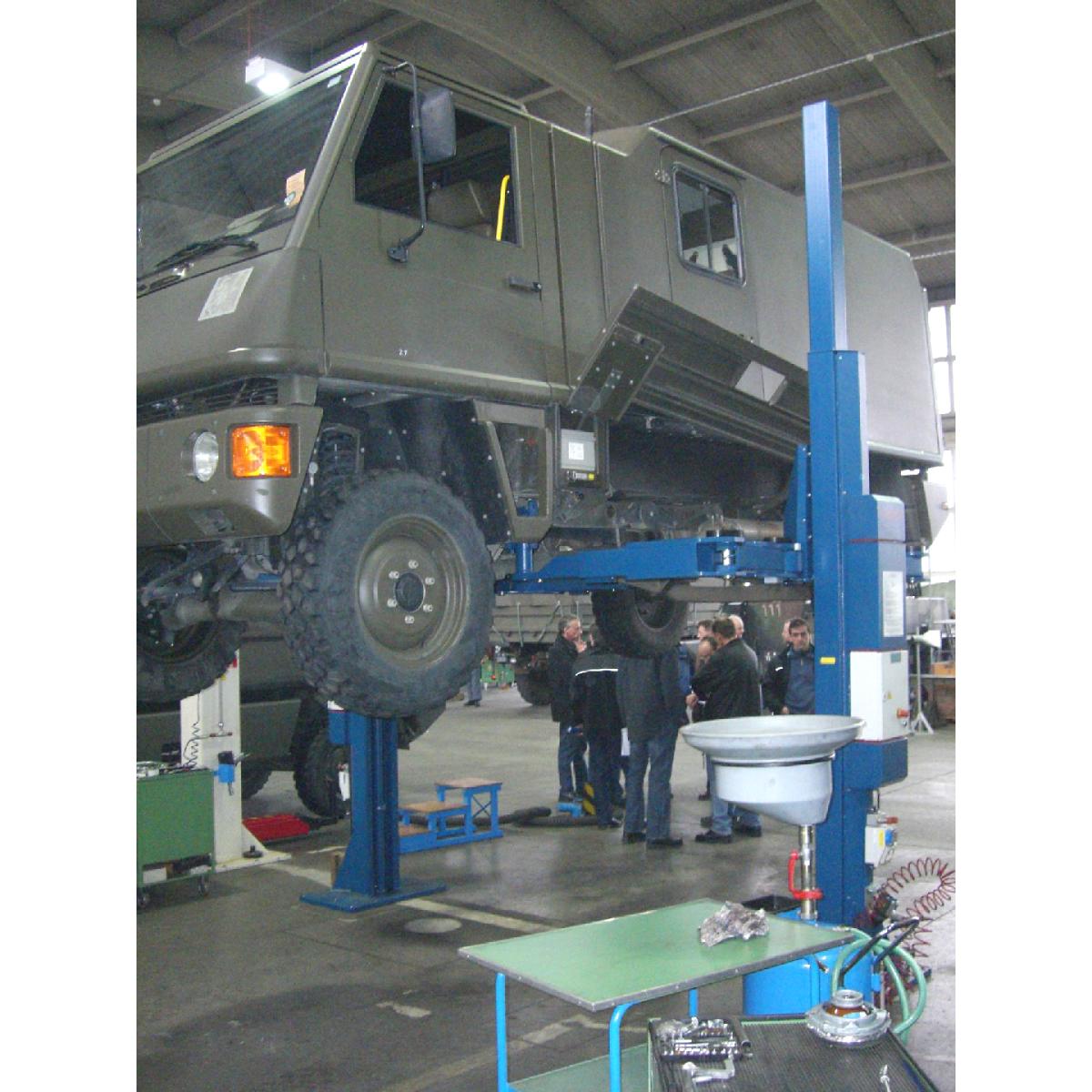

The OTTO 18 is equipped with flexible, space-saving double-jointed arms and an enormous lifting capacity. The OTTO 18 can safely lift vehicles ranging from small passenger cars and light trucks up to large tractor trailers. The dual power unit, with control panel at both columns provides bigger comfort and safety. And thanks to the electronic sync system, there is no rigid top connection, which allows the installation height to be variable.

FEATURES:

• Security and synchronization with the Safety Star Technology
• Shut off bar on top
• No ground connection
• Double-jointed arms
• Fast lifting and lowering
• Low maintenance and almost wear-free cylinder

CARRYING ARMS:

• The symmetric double-jointed arms are roller-beared and telescopic, guaranteeing
exact positioning to the individual pick-up points, even for small passenger cars.


• Thanks to the optional MINI MAX adapter, with a capacity of 9,000 lb, the
double-jointed arms are really universal and can lift even the smallest cars. With
an adjustable range from 3" to 7", the lift with MINI MAX is ideal for small cars
and other vehicles with low clearance.

Details
Capacity 18,000 lb
Pick up pad height min 5.5 - 8.5 inch
Front arms extension min-max 0-74.5 inch
Rear arm extension min-max 0-74.5 inch
Column height 107.75 inch
Lifting height 78.75 inch
Overall width min 165.75 inch
Drive-through width min 102.75 inch
Total height min 182.75 - 200.75 inch
Power supply (V/ph) 208/230V 1 PH
Motor power 3 hp

Force Diagrams

8567 NB v2 53 KB

Dowel drilling patterns

6971 EINBAU v3 28 KB

Inspection books

OPI PL HDL 6500 7000 8000 SST DG V1 0 DE EN FR ES IT 022019 Web v3 13 MB
OPI POWER LIFT HDL 15000 18000 V1 0 EN 012020 Web 7.5 MB
